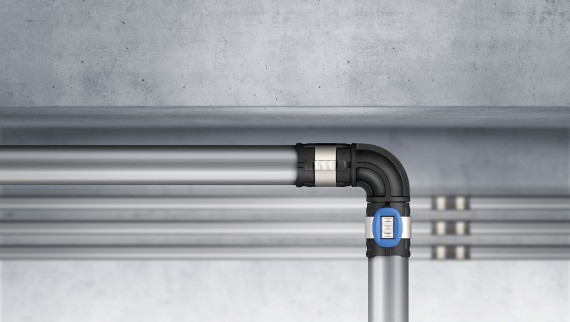

Geberit FlowFit Optimizuota geriamojo vandens vamzdynų sistema
Sklandus montavimas
Geberit FlowFit tiekimo sistema su šonine presavimo technologija supaprastina montavimą įvairiose vietose ir pagreitina darbo eigą. Pakanka dviejų presavimo replių, kad būtų galima presuoti visus matmenis nuo d16 iki d75, todėl nereikia dažnai keisti įrankių.
Apžiūros angos leidžia montuotojams patikrinti, ar vamzdis įdėtas į tinkamą gylį, o mėlyni arba oranžiniai presavimo indikatoriai ant jungčių patvirtina, kad vamzdžių sistema yra teisingai sumontuota ir saugiai supresuota.
Geberit FlowFit presavimo jungtys taip pat yra optimizuotos srautui, todėl geriamojo vandens instaliacijose galima naudoti mažesnio skersmens vamzdžius.
Platus Geberit FlowFit jungčių asortimentas tinka įvairioms taikymo sritims.
Kodėl rinktis Geberit FlowFit?
Lengvas montavimas
Paprastas montavimas, mažiau darbo etapų ir jokių neaiškumų
Dvejos presavimo replės visiems diametrams
Sklandus ir greitas montavimas keičiant mažiau įrankių
Patikimai užspausta
Aiškios montavimo gairės ir patikimas presavimo indikatorius
Srauto optimizavimas
Mažesni slėgio nuostoliai leidžia naudoti mažesnio skersmens vamzdžius
Pagrindinės sritys
Geriamojo vandens vamzdžiai
Geberit FlowFit gali būti naudojami geriamojo vandens vamzdymams, taip pat jungiamiesiems karšto ir šalto vandens vamzdžiams.
Daugiabučių namų šildymas
Geberit FlowFit tinka vėsinimo ir šildymo vandens sistemoms su antifrizuojančia medžiaga arba be jos, kai slėgis iki 10 bar.
Suslėgtas oras
Geberit FlowFit galima naudoti iki 10 barų suslėgtam orui.
Geberit FlowFit privalumai Paprastas saugus montavimas
Easy to install in just a few steps
Geberit FlowFit enables safe and effortless installation by eliminating unnecessary work steps and reducing the number of tools required. Clear inspection features provide additional confidence in achieving a complete and secure installation.
The pressing point is rotatable, allowing the pressing jaw to be positioned easily in any installation situation. This ensures that press connections can be securely made even in tight and hard-to-reach spaces.
Thanks to the special fitting design, there is no need for pipe calibration or deburring after cutting to length.

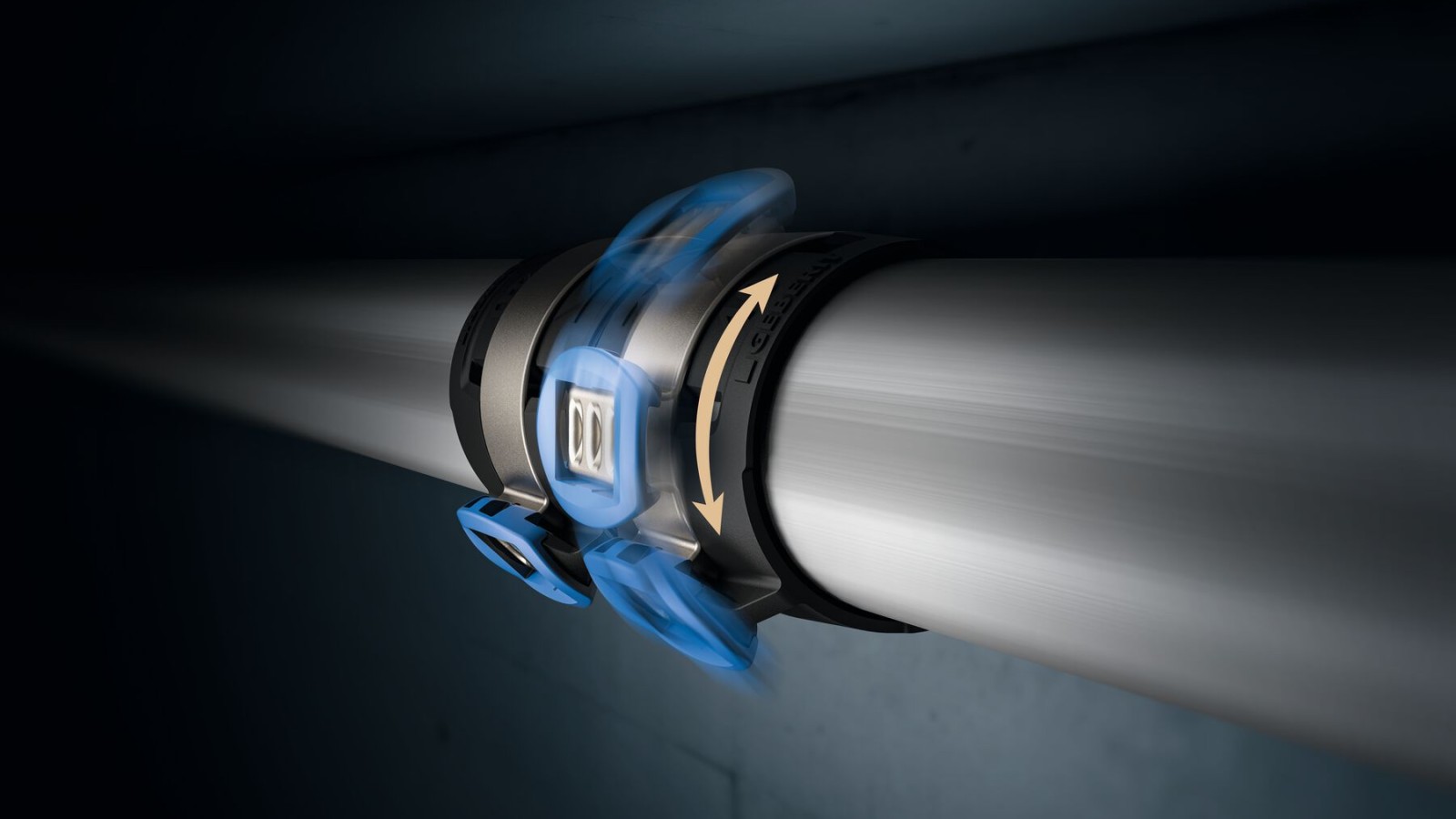

Convenient and safe pressing: With lateral pressing technology, the pressing jaw only needs to be applied from one side. The pressing point can be rotated to ensure the press fitting is easily accessible and securely pressed. The press fitting can be turned in 45° increments.

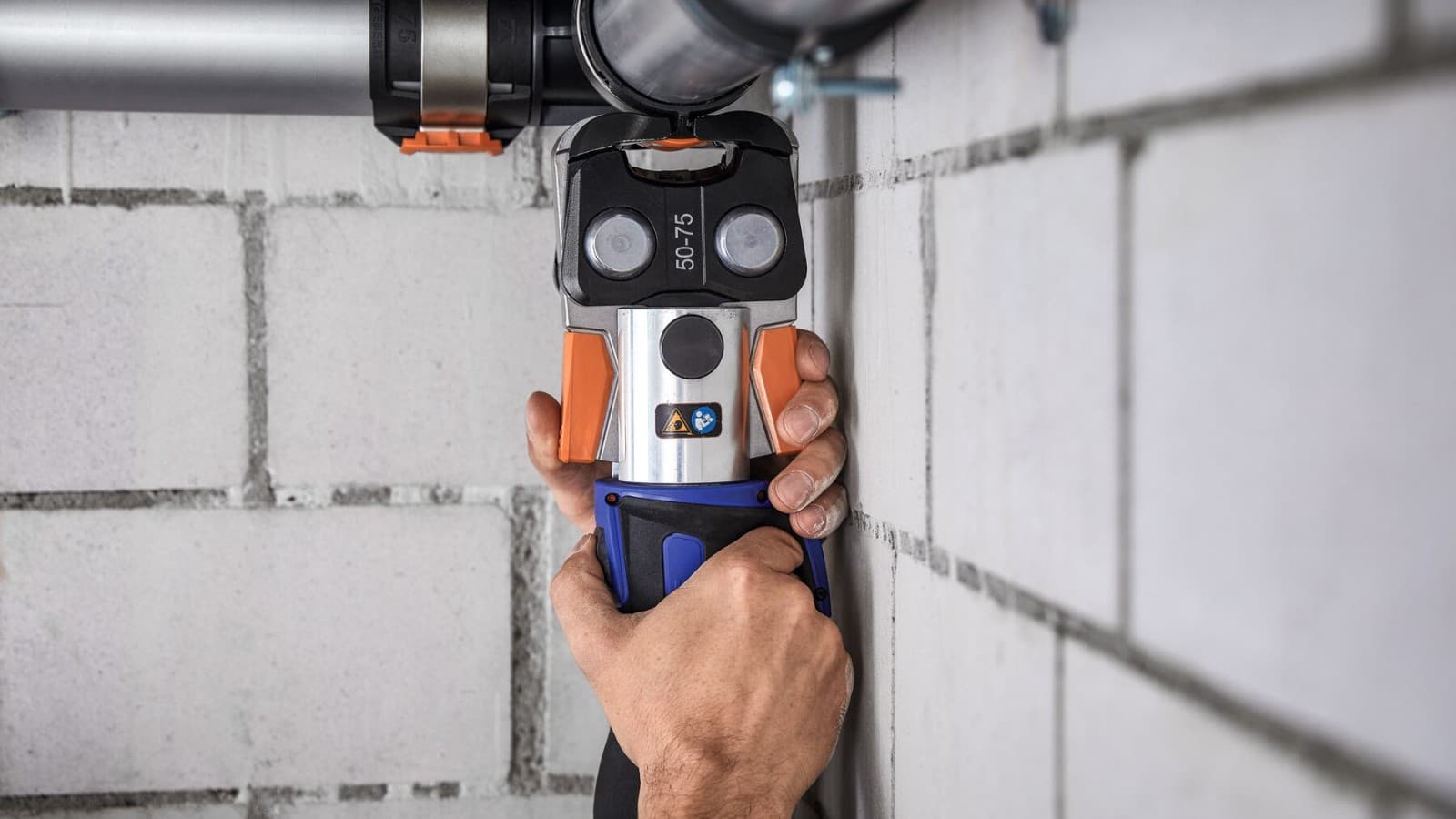

Installation in tight constructional situations: The pressing jaw only needs to be applied from the side, making secure pressing effortless even in corners or tight spaces.

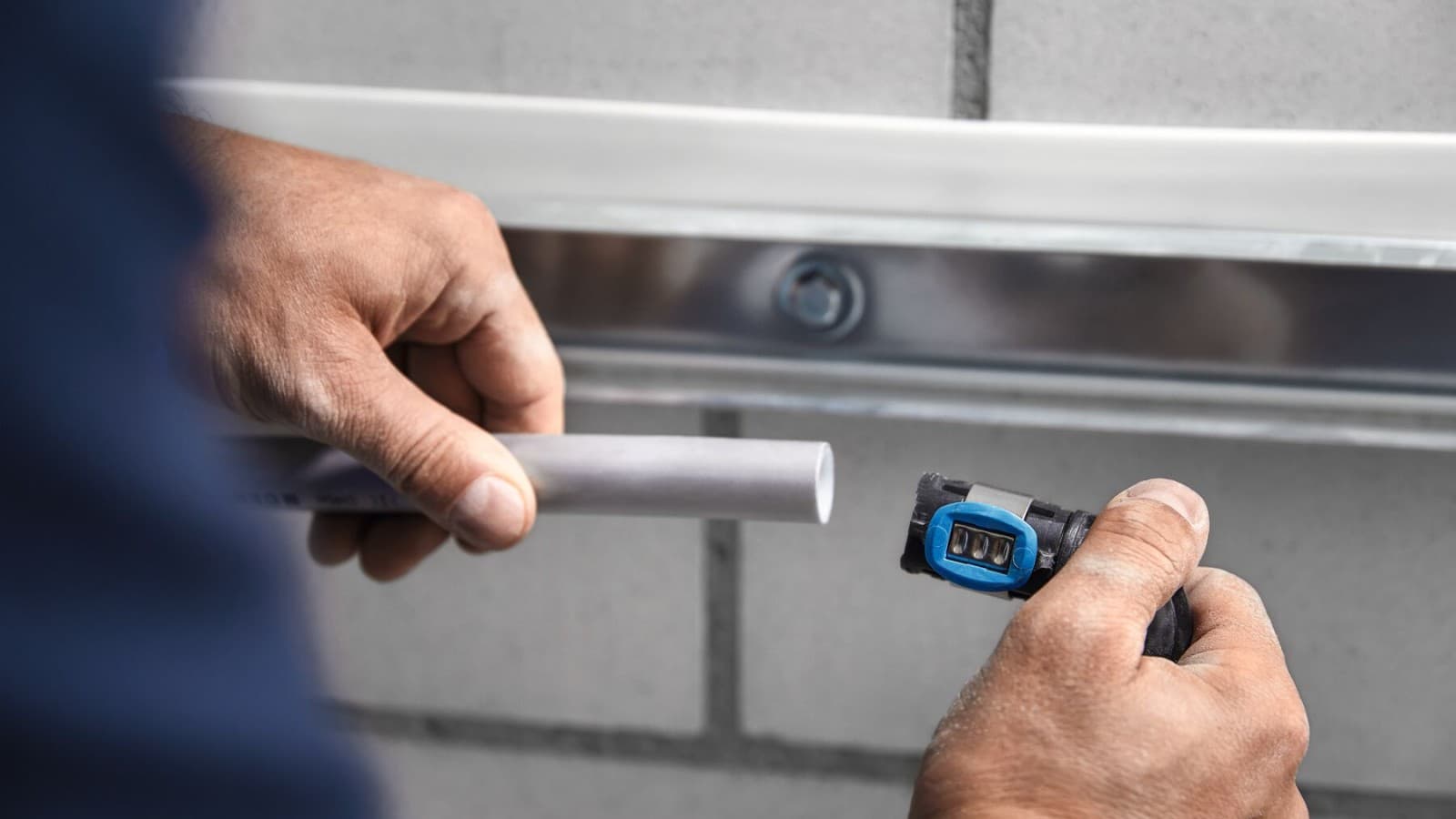

No deburring or calibration: Once cut to length, the press fitting is simply pushed onto the pipe. If the pipe is not perfectly round, a Geberit calibration tool can correct its shape.

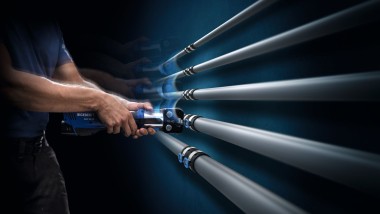

No constant tool changes

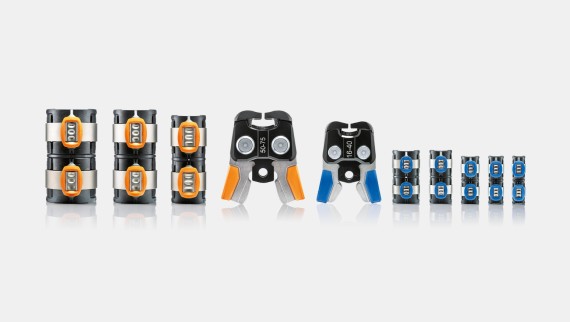

Pipes in eight dimensions from d16 to d75 can be securely pressed using just two pressing jaws, eliminating the need for frequent jaw changes and minimising the tools required on the building site.
The dimensions d16 to d40 can be processed with hand-operated pressing pliers. This makes it possible to complete an installation for an entire apartment building without relying on a power source or battery swaps.
The colour coding ensures clear matching of the jaw and fitting and reduces the risk of mix-ups.

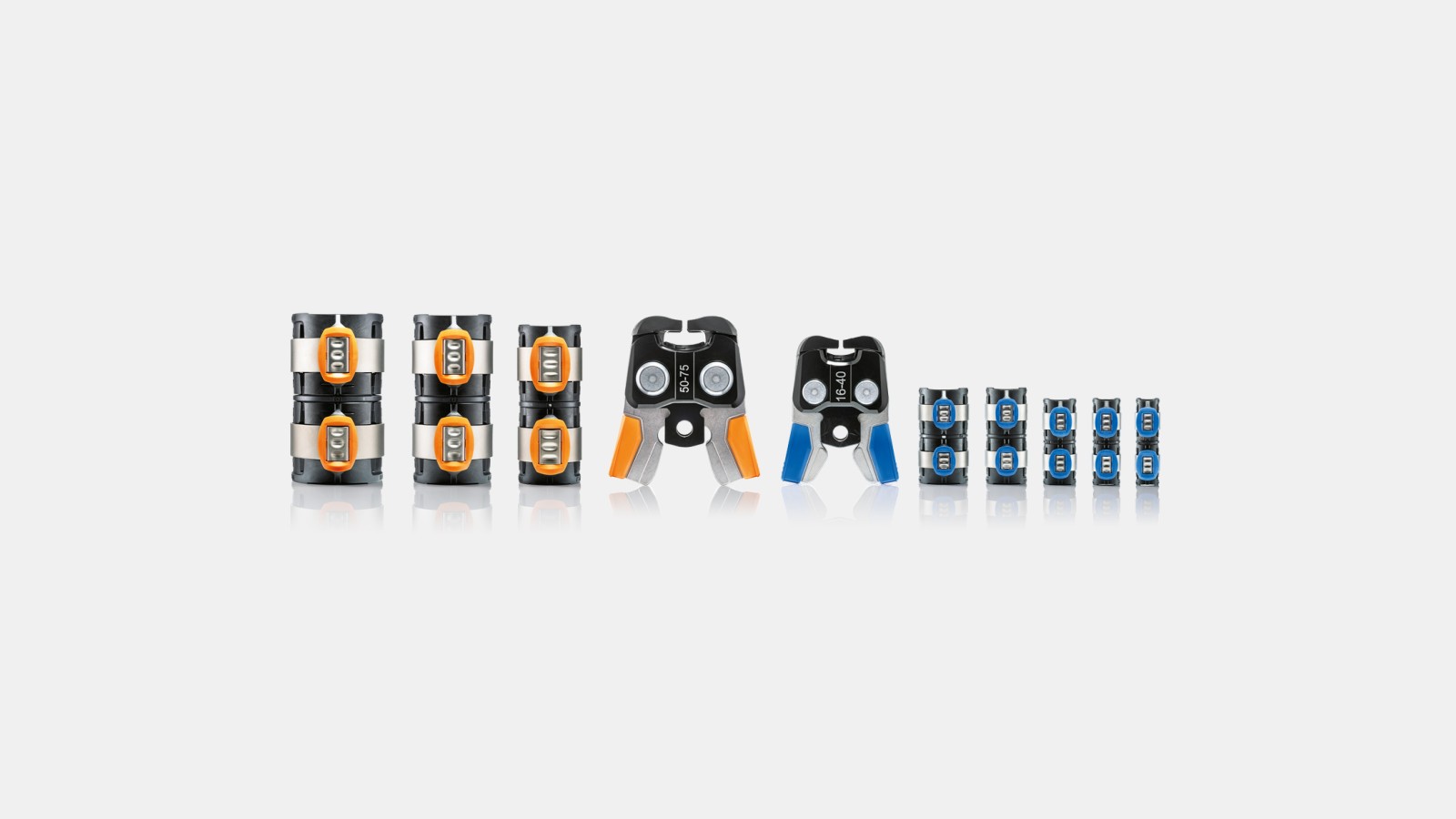

No tool changes: just two pressing jaws are required to press the eight dimensions from d16 to d75. This allows bathroom installations to be processed effortlessly without changing jaws.

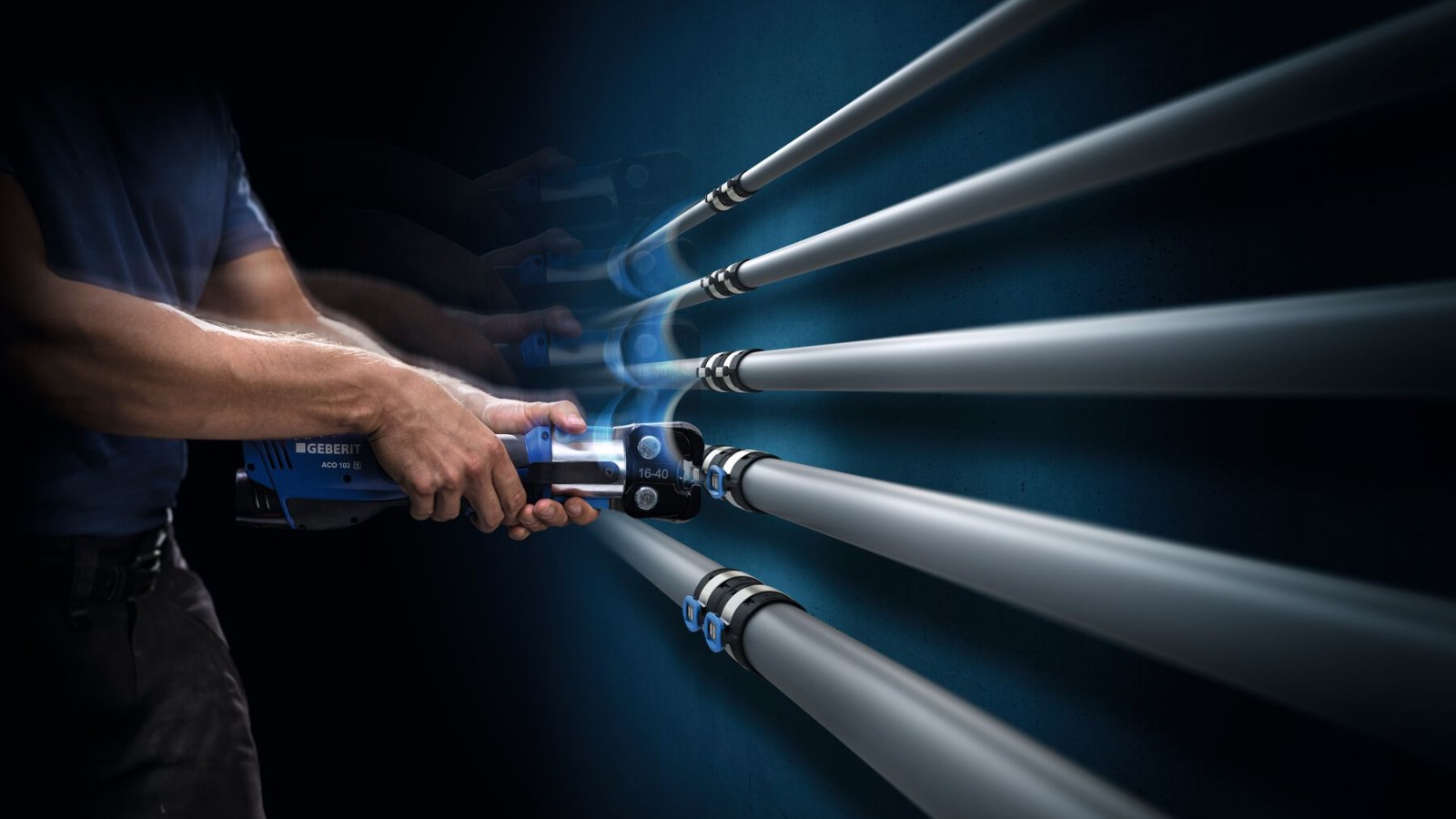

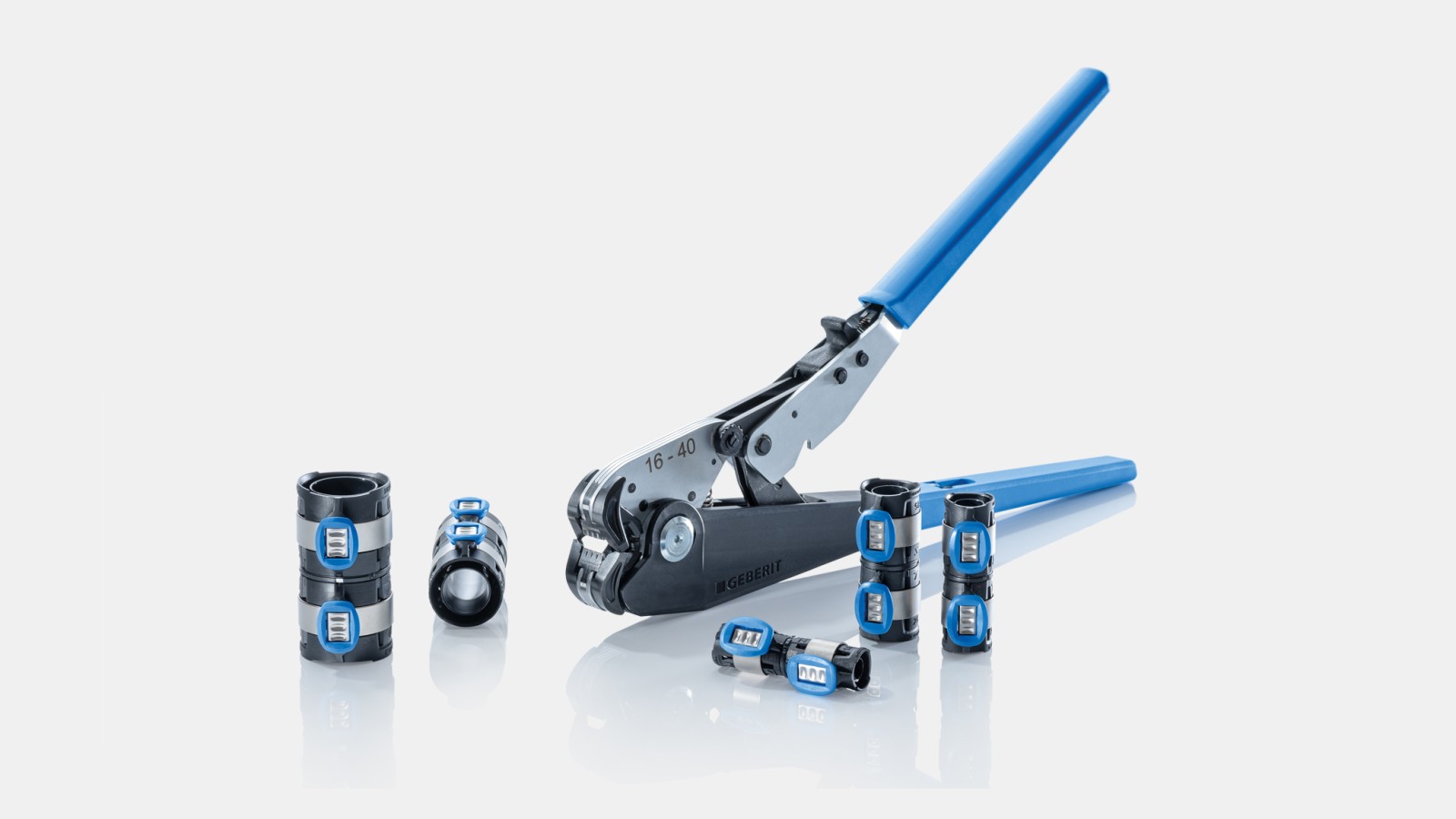

Hand-operated pressing pliers for dimensions d16 to d40: hand-operated pressing pliers do not need to be connected to a power supply, meaning the tool is always ready for use and there are no unnecessary interruptions for replacing or charging batteries.

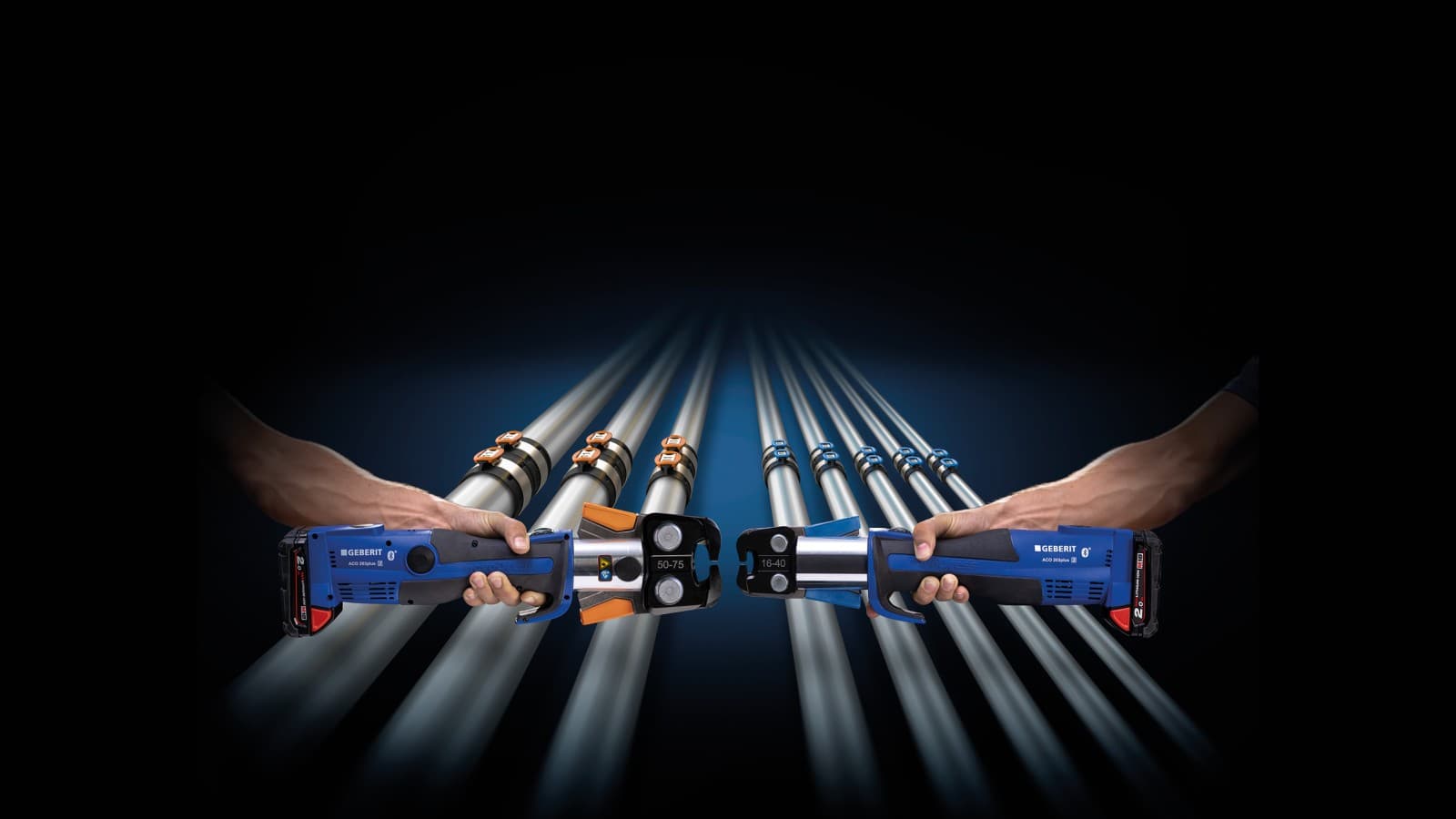

Colour-coded matching of the pressing jaw to dimensions: The colour-coded markings on the pressing indicator and the pressing jaw enable users to intuitively choose the right tool.
Secure pipe joints with reliable checking features
Geberit FlowFit ensures safe and secure processing at multiple points in the process. An inspection window in the fitting allows for precise checking of the pipe insertion depth.

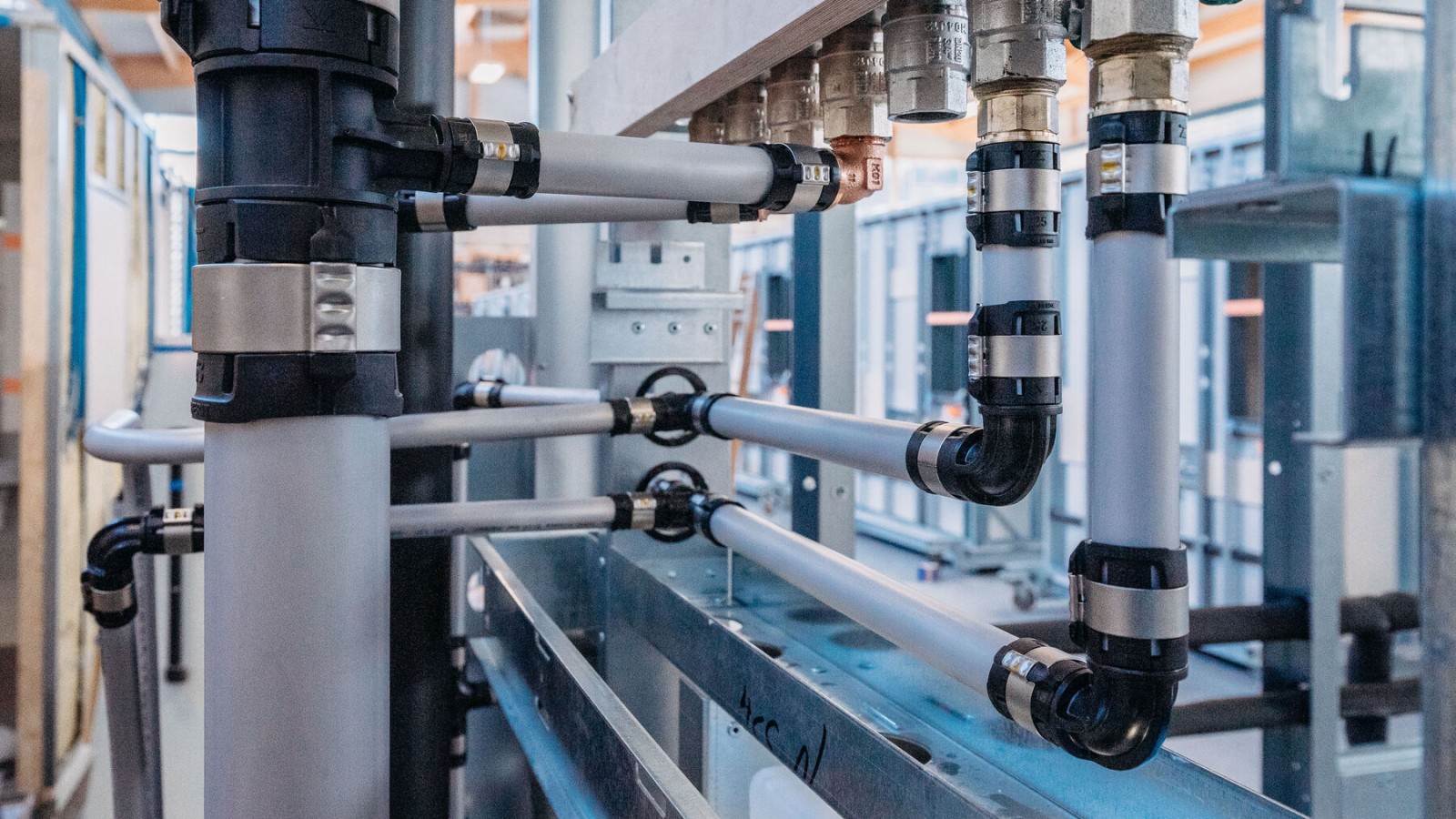

The coloured pressing indicator only detaches once successfully pressed, making unpressed connections immediately visible during a visual check.

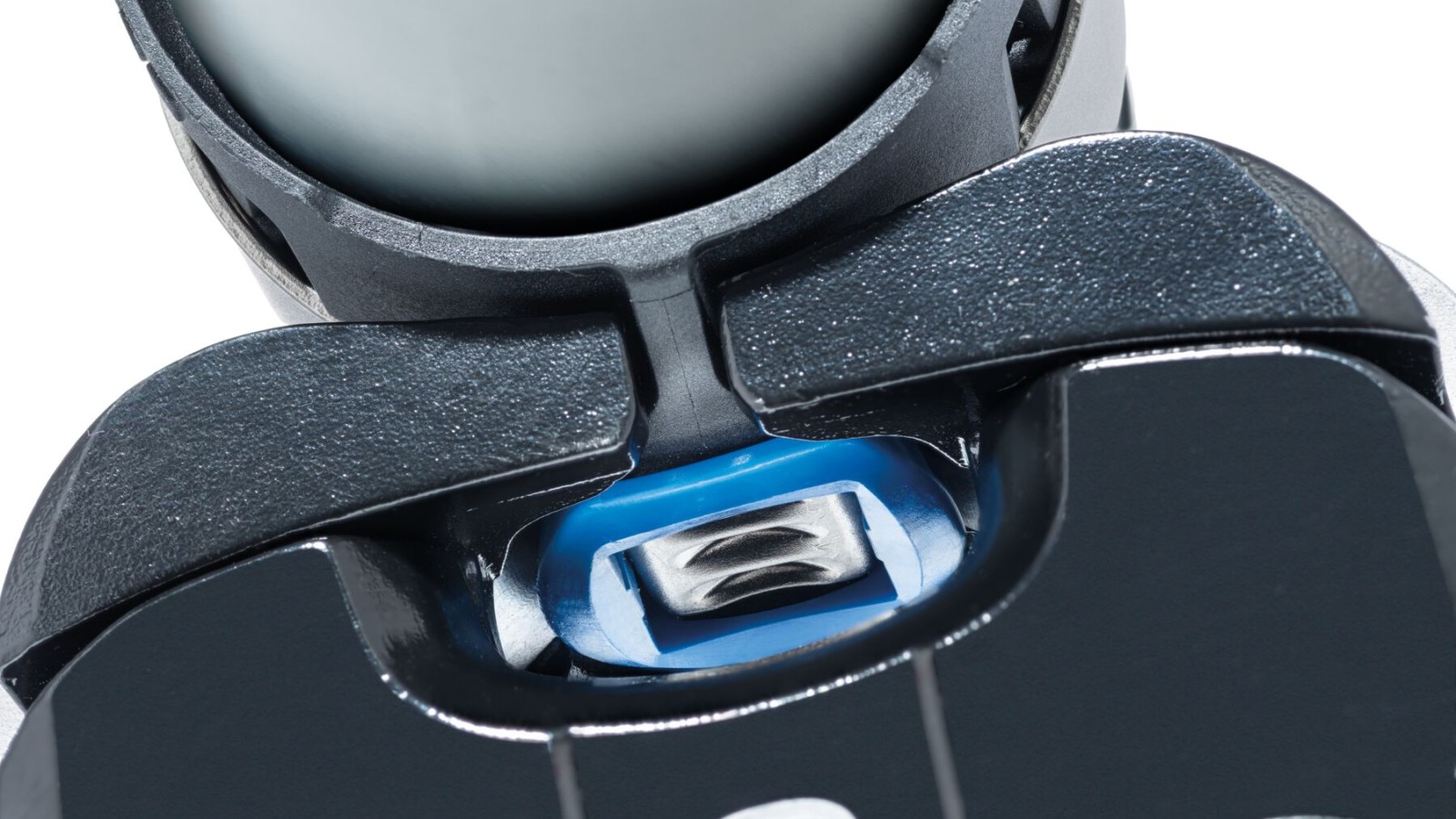

The tool and pressing indicator fit together like a lock and key, virtually eliminating the risk of failed pressing sequences due to incorrect tool positioning.
No more failed pressing sequences: the pressing indicators help to position the pressing jaws with ease. This virtually eliminates the risk of a failed pressing sequence caused by incorrect positioning.

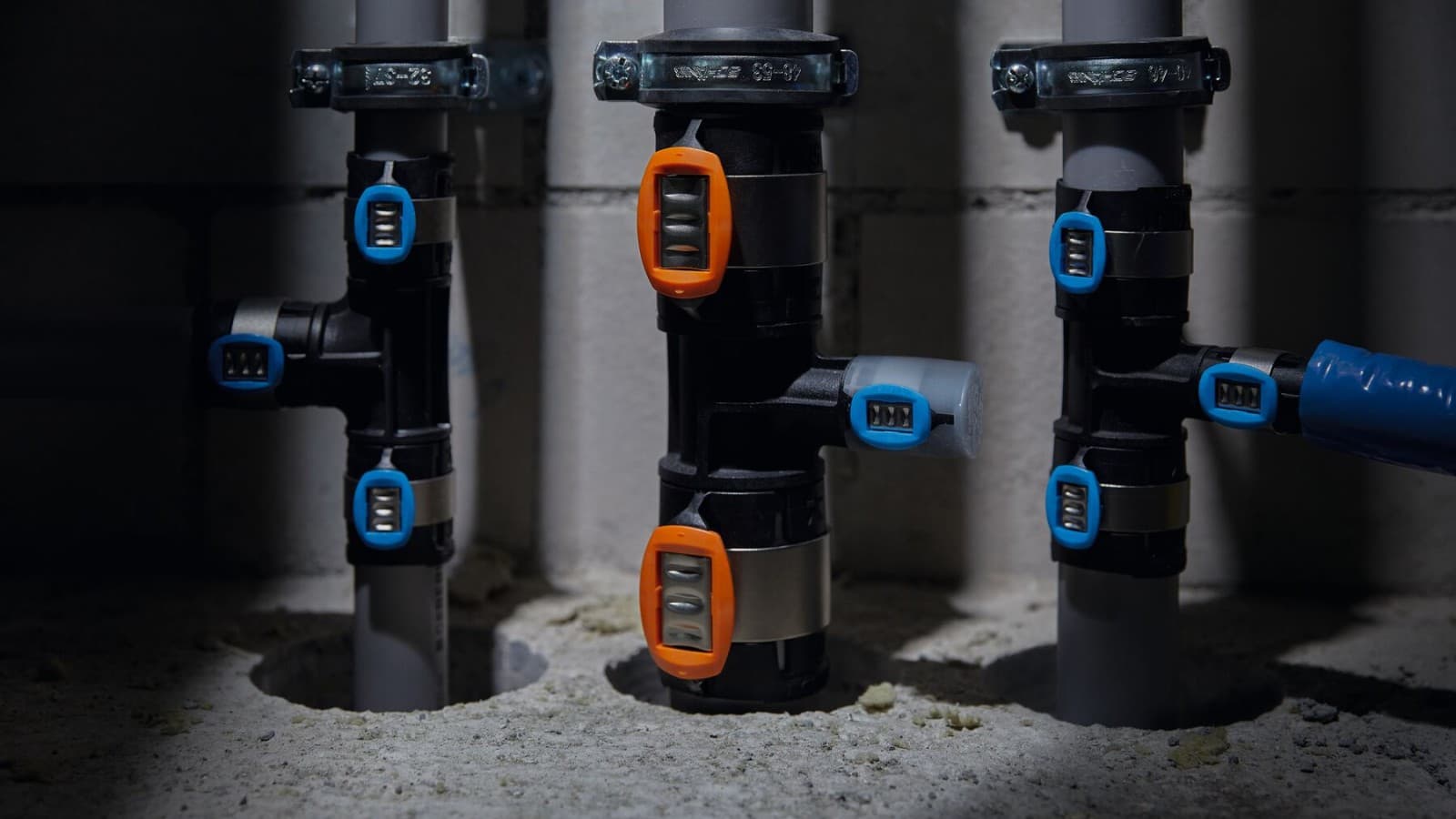

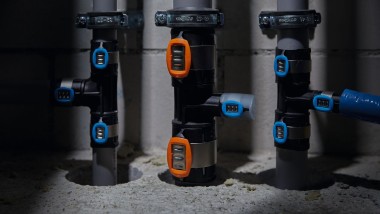

Unpressed connections are clearly identifiable: even when visibility is difficult, it is clear to see whether the pressing indicator is still present or if the point has already been pressed. Defined leak paths make unpressed fittings immediately visible in the pressure test.

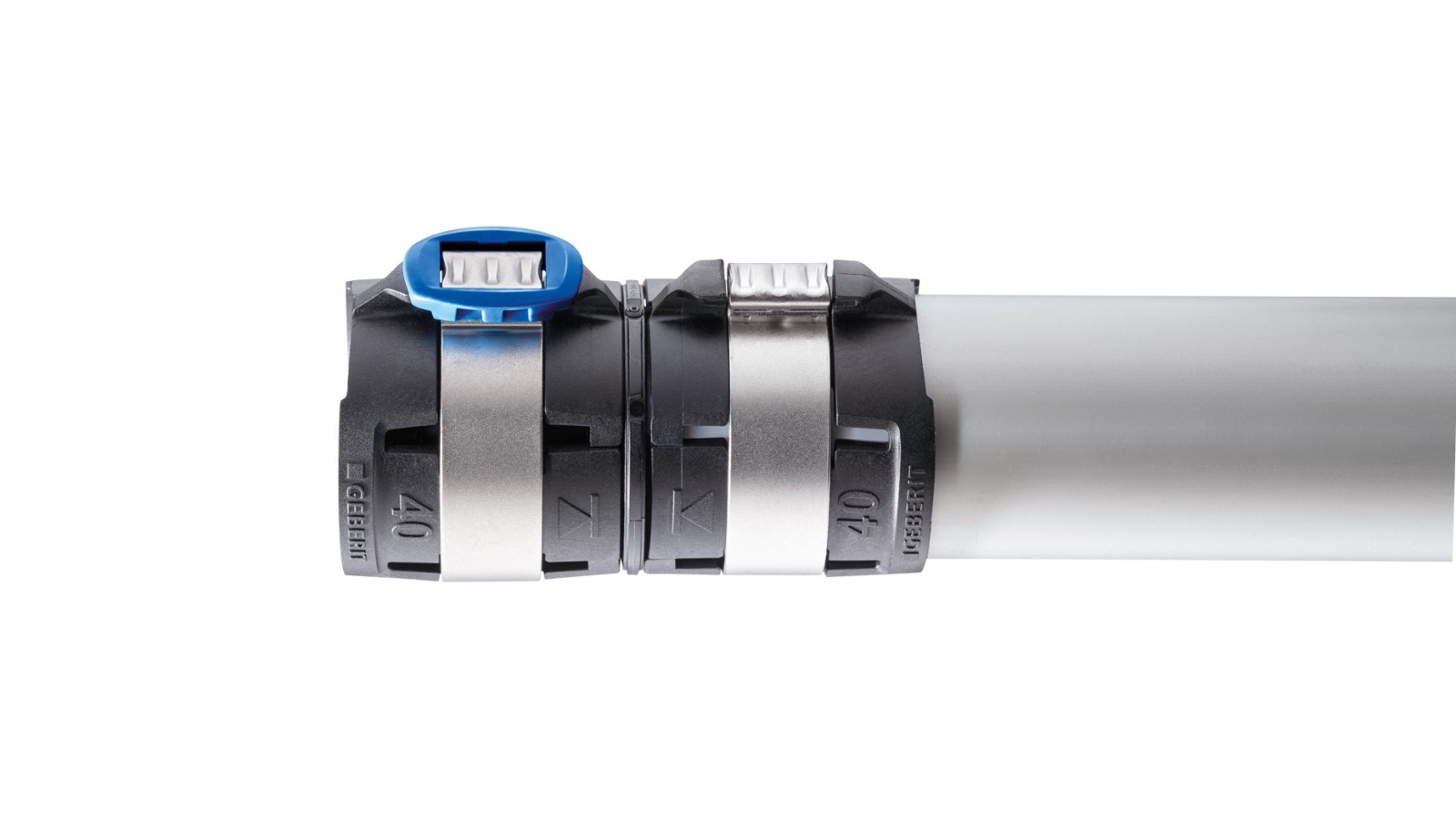

Reliable checking of the insertion depth: thanks to the inspection windows in the fitting, plumbers can clearly identify whether the pipe is inserted completely and correctly.
Clean installation without pressure loss

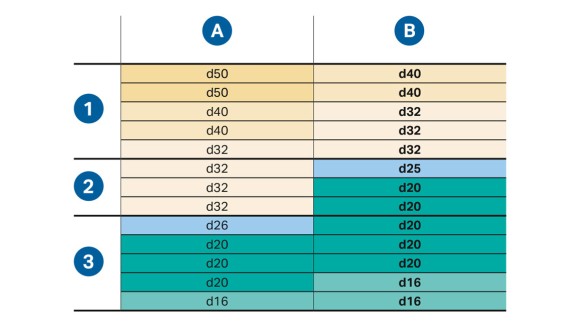

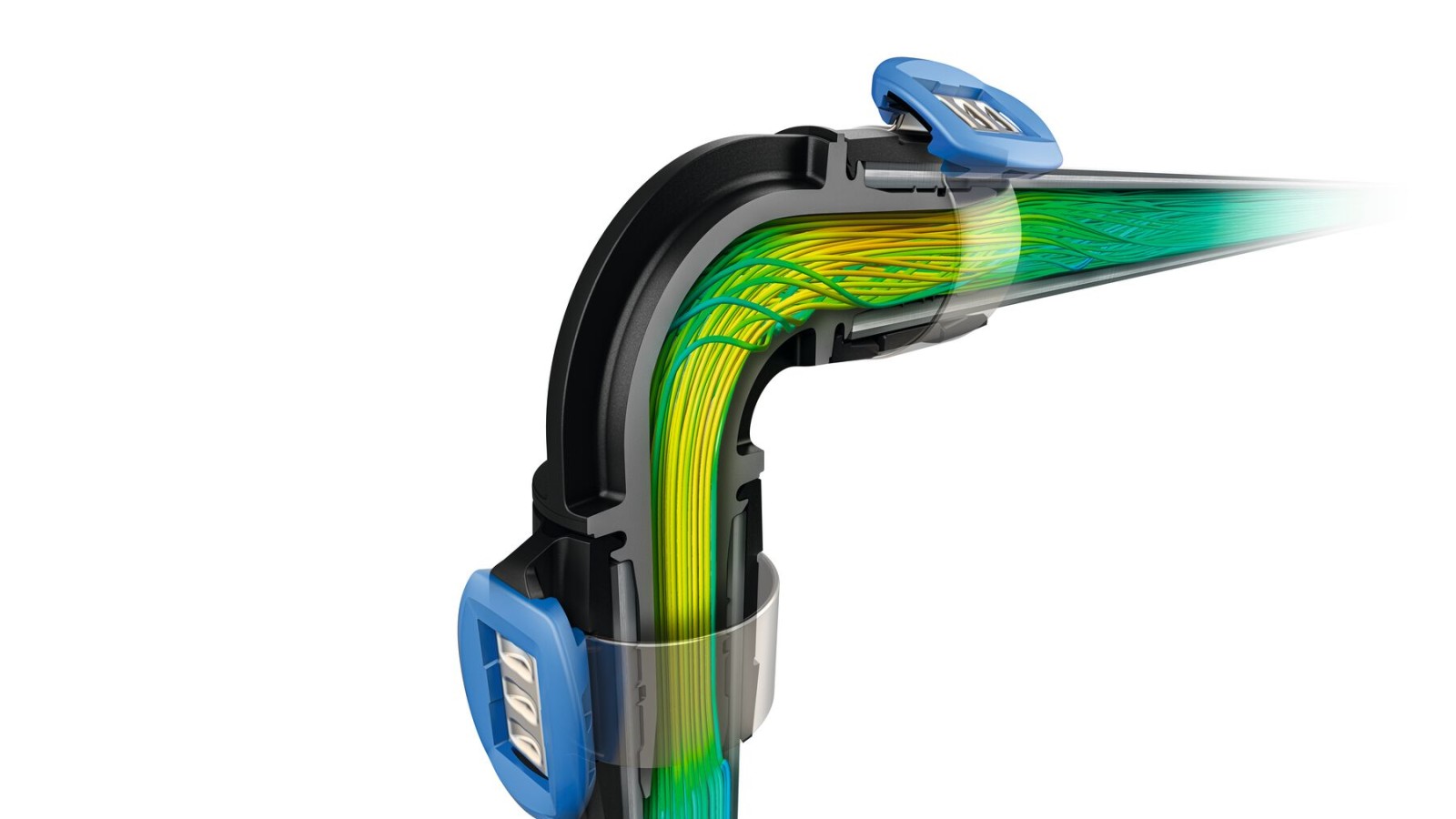

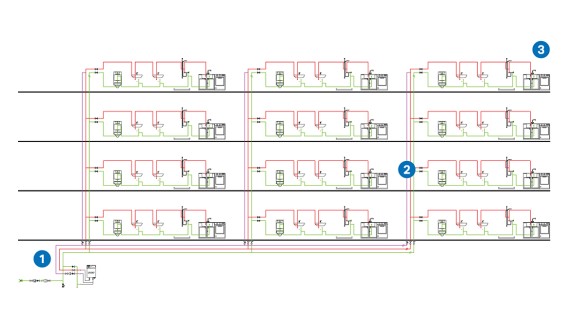

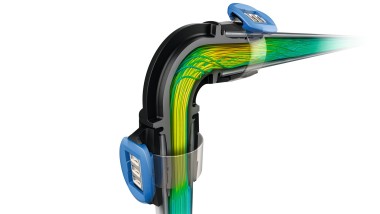

The flow-optimised design of the Geberit FlowFit press fittings results in minimal pressure losses. Drinking water installations can be planned and installed with much smaller diameters.
This results in shorter draw-off times, reduced water volume and less stagnation in the pipe.
All Geberit FlowFit fittings and pipes, including threaded connections, are fitted with protective caps. This ensures they remain securely protected from particles and dirt during transport and storage.
Pressure loss-optimised supply system: With minimal pressure losses, the drinking water installation can be implemented using smaller pipe dimensions than ever before. This results in better hygiene, material savings and less installation effort.

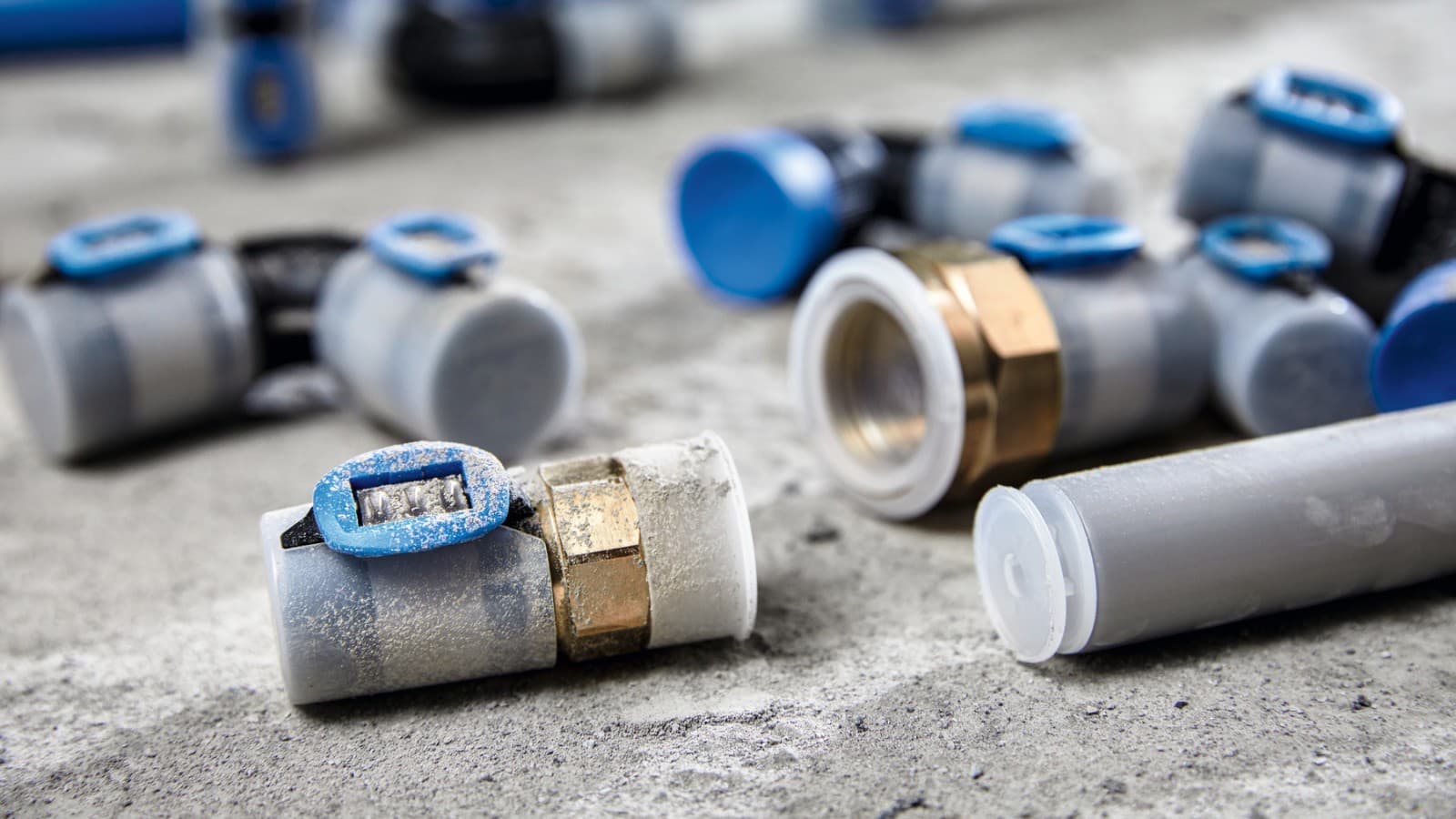

Protection against particles and impurities: All Geberit FlowFit fittings including the threaded connections and pipes are fully protected against dirt and transport damage with protective caps.

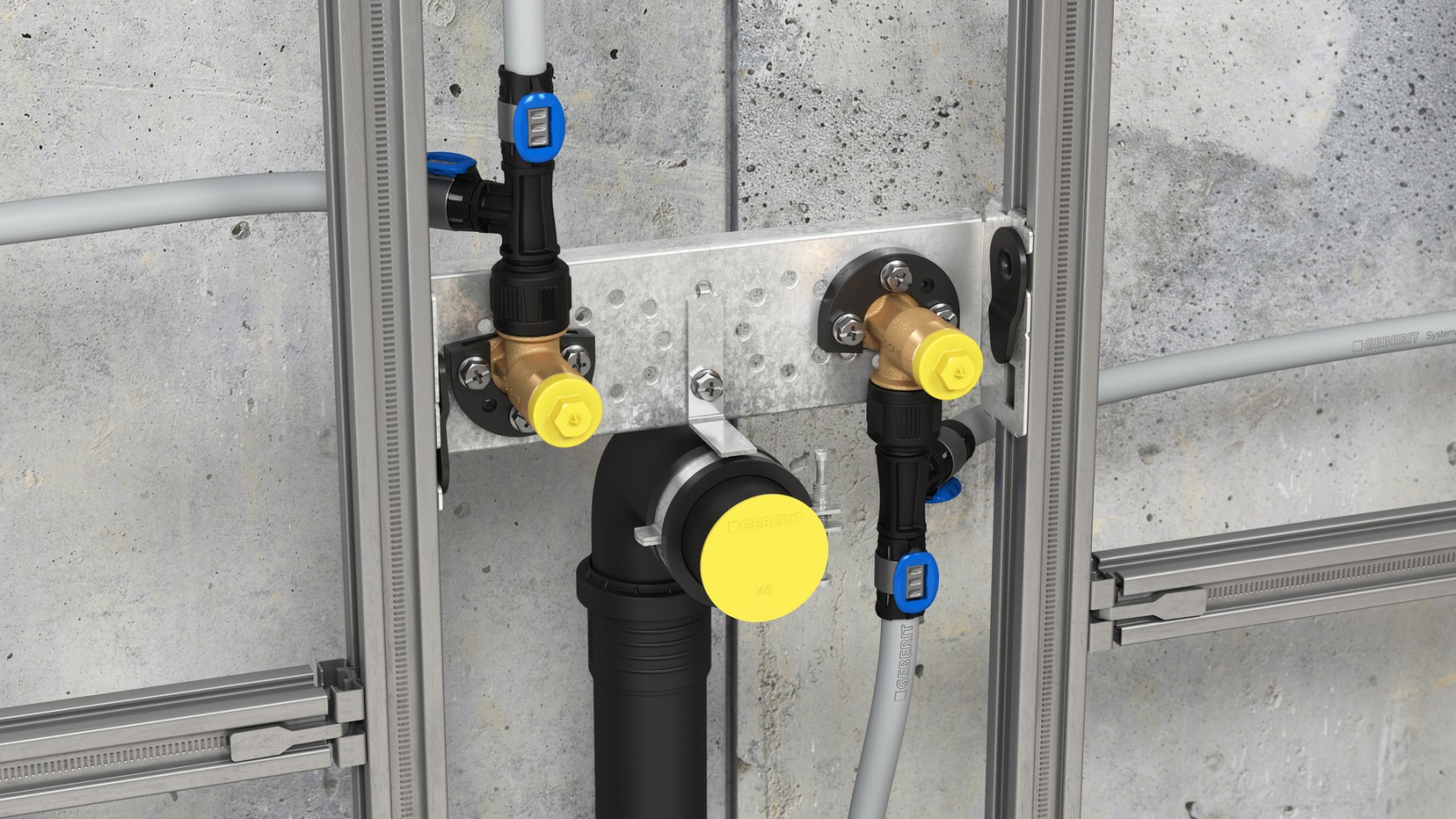

The advantage of using Geberit MasterFix T-pieces is that they significantly reduce the transfer of heat on the tap connector and facilitate the installation of series-connected pipes.
Geberit FlowFit iš pirmo žvilgsnio
Faktai ir skaičius
Asortimento apžvalga
- 8 nominalūs skermenys nuo d16 iki d75
- Apie 500 fasoninių dalių ir komponentų
- Daugiasluoksnės (ML) sistemos vamzdžiai, taip pat prieinami su apsauginiu vamzdžiu arba iš anksto izoliuoti
- Polibuteno (PB) sistemos vamzdžiai, taip pat prieinami su apsauginiu vamzdžiu
- MasterFix adapteris skirtas saugiam, be įrankių sujungimui su Geberit sanitariniais prietaisais
- Platus adapterių ir perėjimų į kitas sistemas asortimentas.
Matmenys
Galimi vamzdžių matmenys
| Nominalusis plotis DN | Matmenys d x s (mm) |
|---|---|
| 12 | 16 x 2.0 |
| 15 | 20 x 2.0 |
| 20 | 25 x 2.5 |
| 25 | 32 x 2.8 |
| 32 | 40 x 3.0 |
| 40 | 50 x 3.8 |
| 50 | 63 x 4.0 |
| 65 | 75 x 4.6 |
Fasoninės dalys
Features
Comprehensive assortment

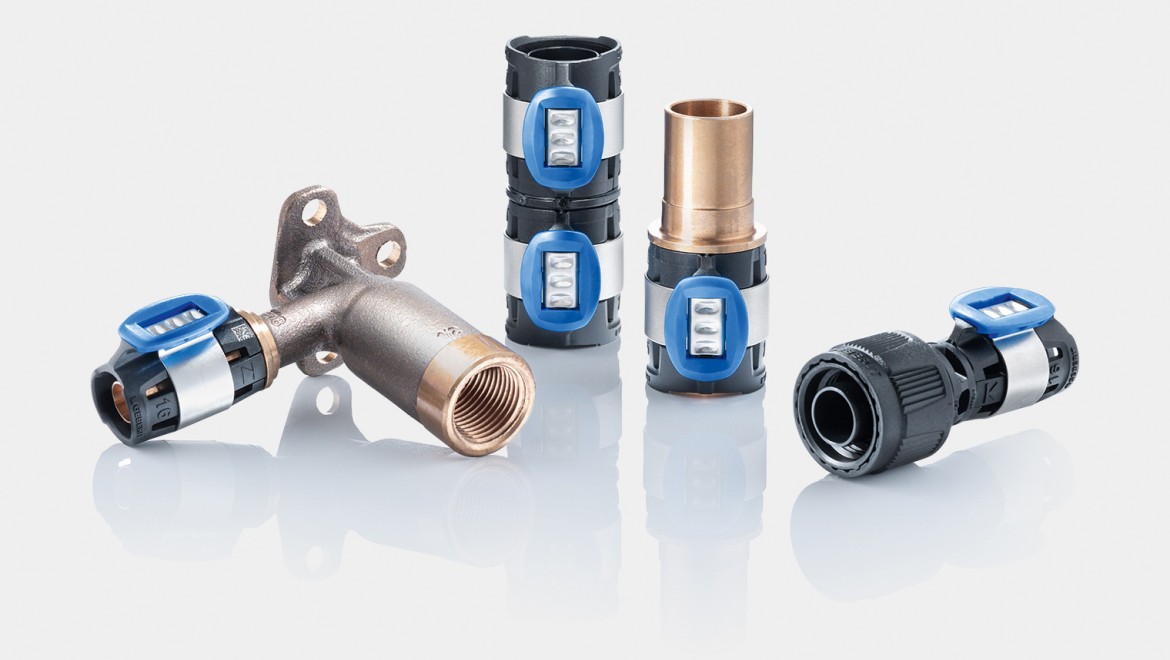

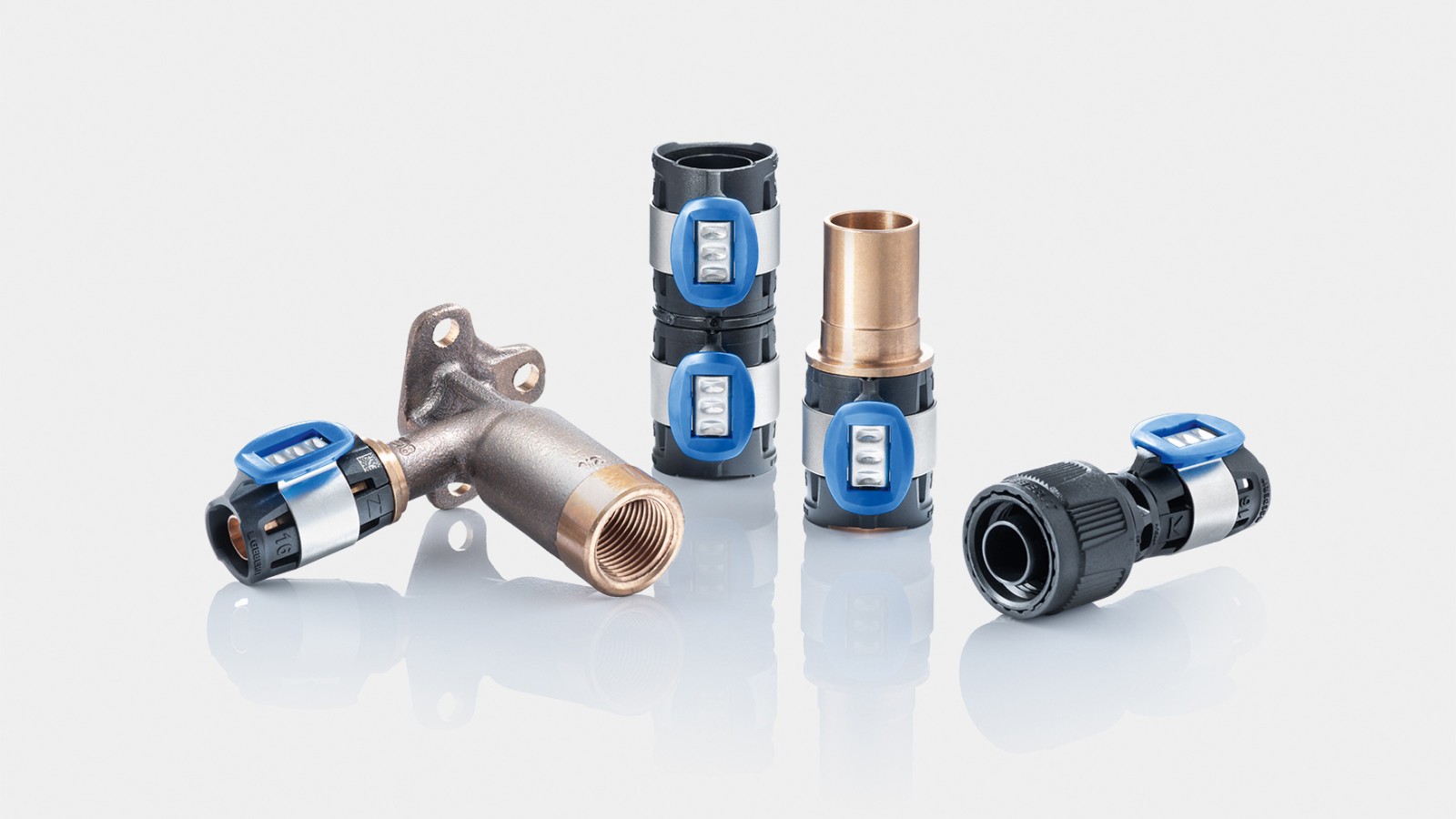

Geberit FlowFit offers a comprehensive assortment of fittings made of PPSU, lead-free gunmetal and lead-free silicon bronze. The assortment includes both standard and special fittings.
Tool-free connection

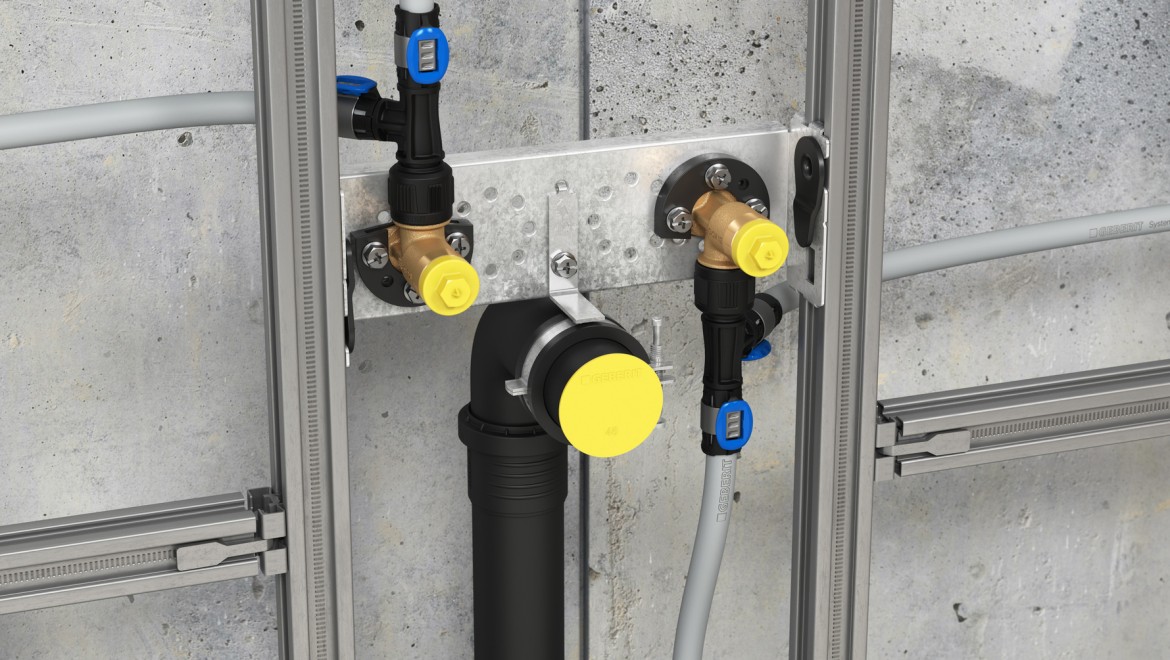

Geberit FlowFit can be connected tool-free to any Geberit taps and fittings with the MasterFix adapter. The connection can be removed again even after a long period of operation.
Can be combined with other supply systems

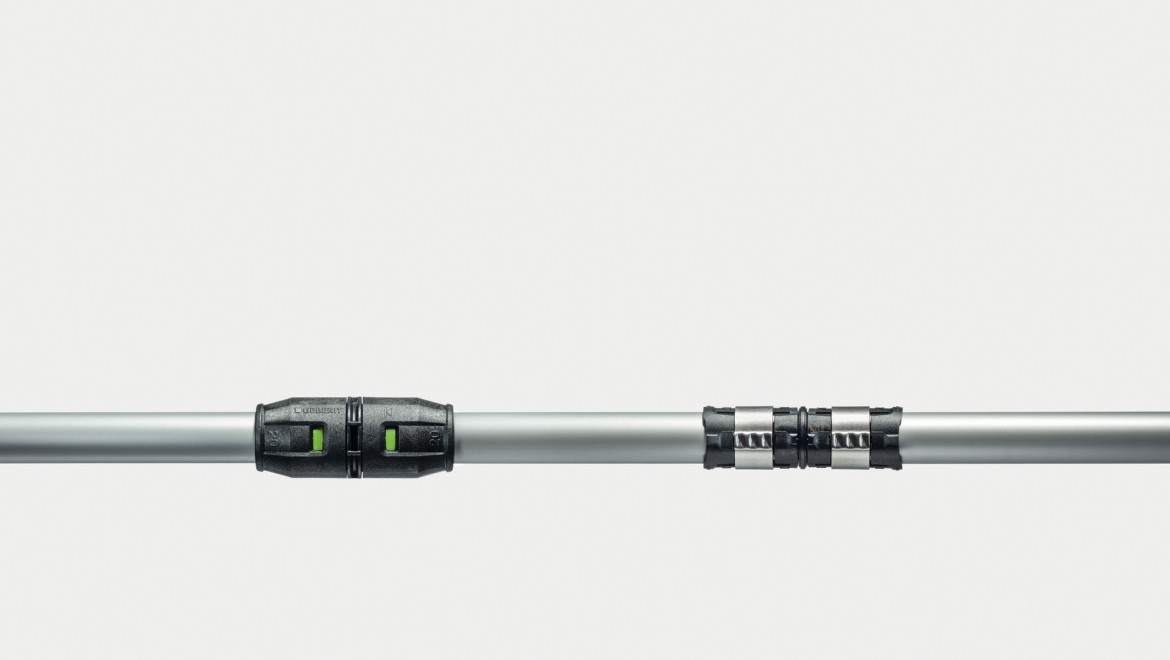

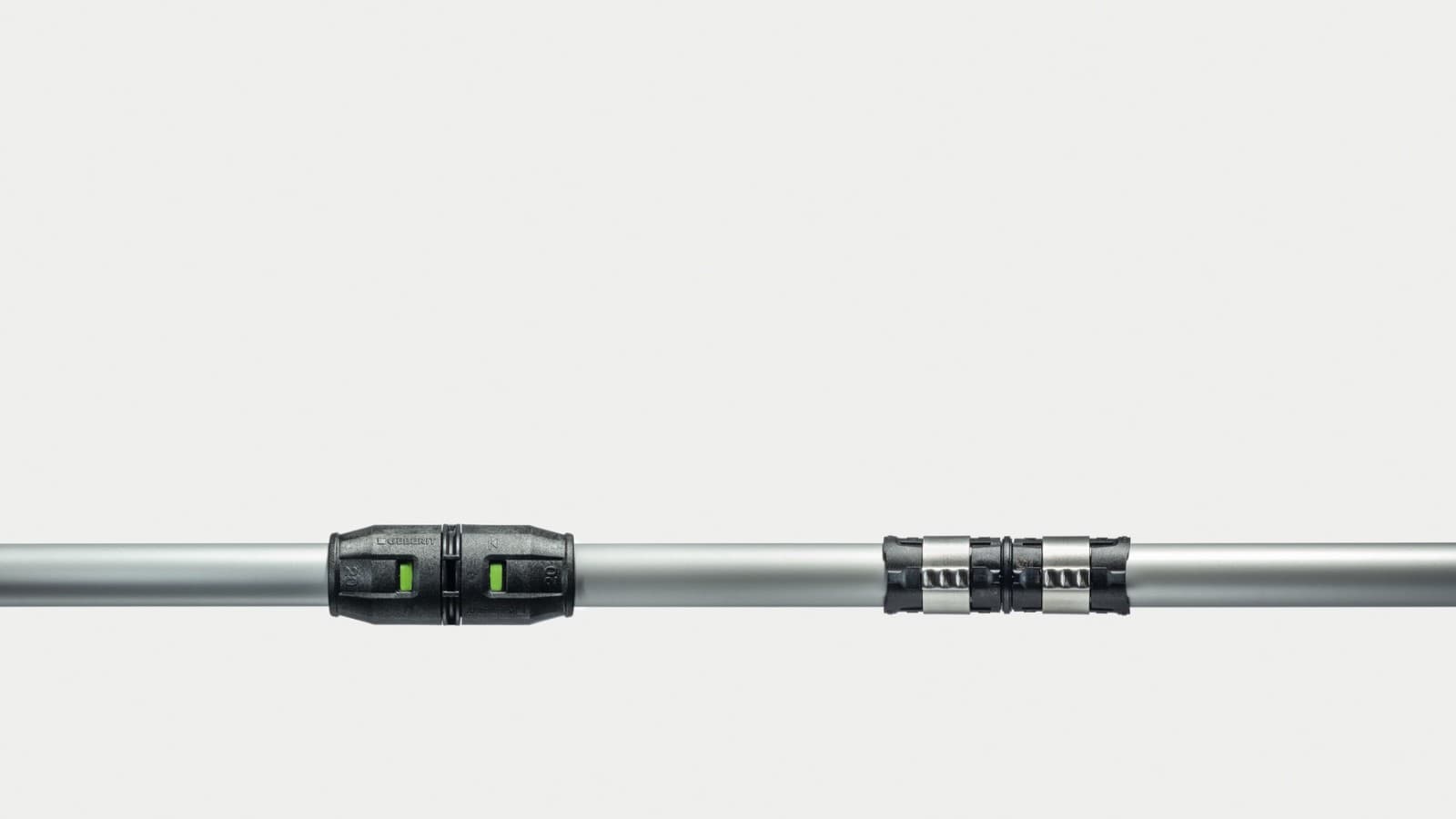

Geberit FlowFit system pipes can also be used as push-fit connections with Geberit PushFit fittings. System adapters are available for connection to other Geberit supply systems.
Geberit FlowFit universal fitting
Connecting Geberit FlowFit to existing pipes in older buildings used to be a complex and time-consuming task.
This is where the Geberit FlowFit universal fitting now offers a much simpler solution. Start by measuring the dimension of the existing pipe, prepare it using the Geberit deburring and calibration tool, attach the adapter, and press. The other end can be installed as usual with Geberit FlowFit.
The universal fitting is available for Geberit FlowFit in dimensions d16 to d26 with various pipe thicknesses.
Sistemos vamzdžiai

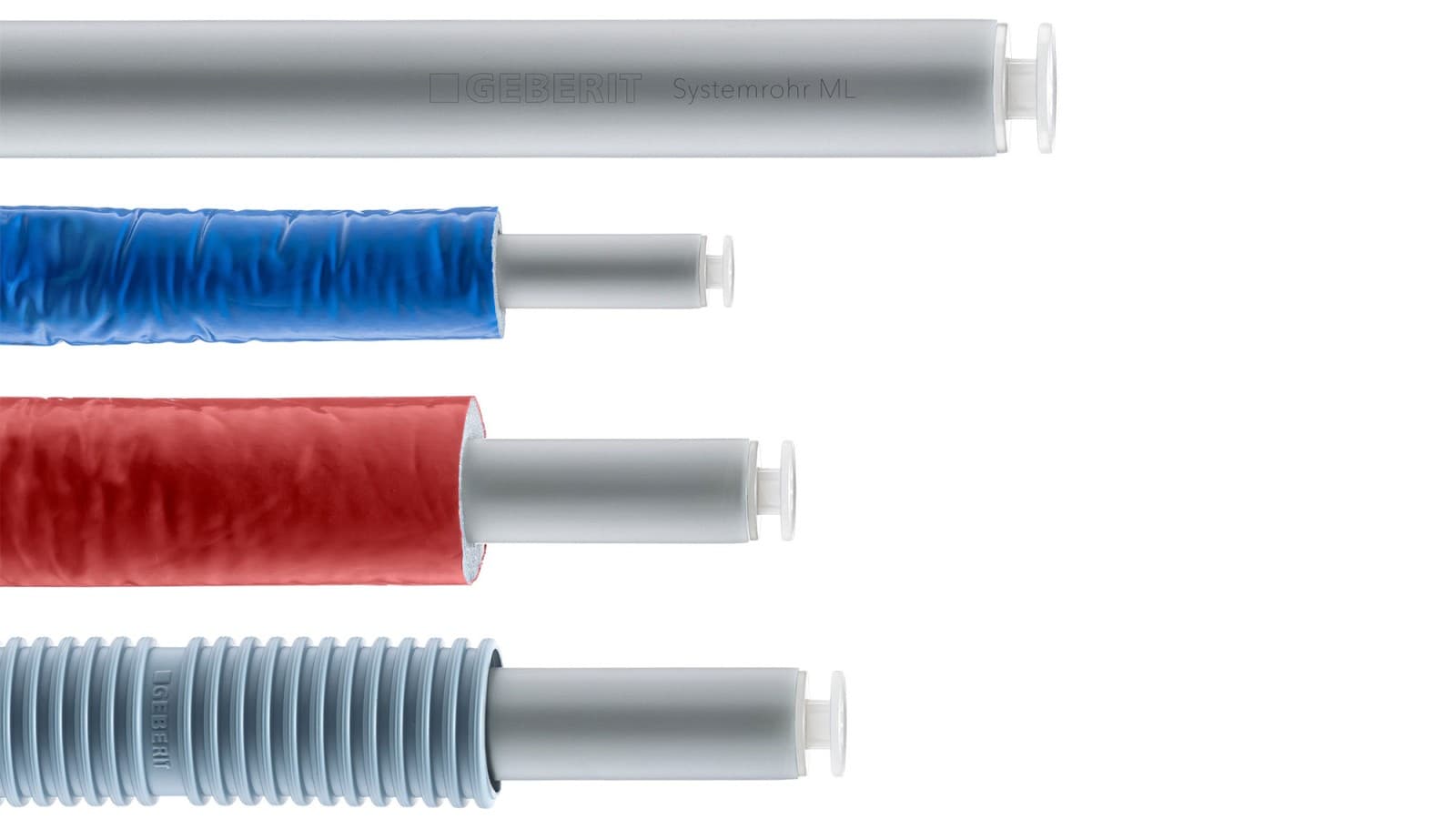

Geberit system pipe ML
- Multilayer system pipe for all applications
- Lightweight and inherently stable
- Available as a rough pipe for dimensions d16 to d75
- With protective shell or with insulation made of polyethylene foam for dimensions d16 and d20
- Various insulation thicknesses are available with durable foil coating in red and blue
- Protection plugs on the pipe ends prevent the accumulation of dirt and particles
- Available in coils for dimensions d16 to d32

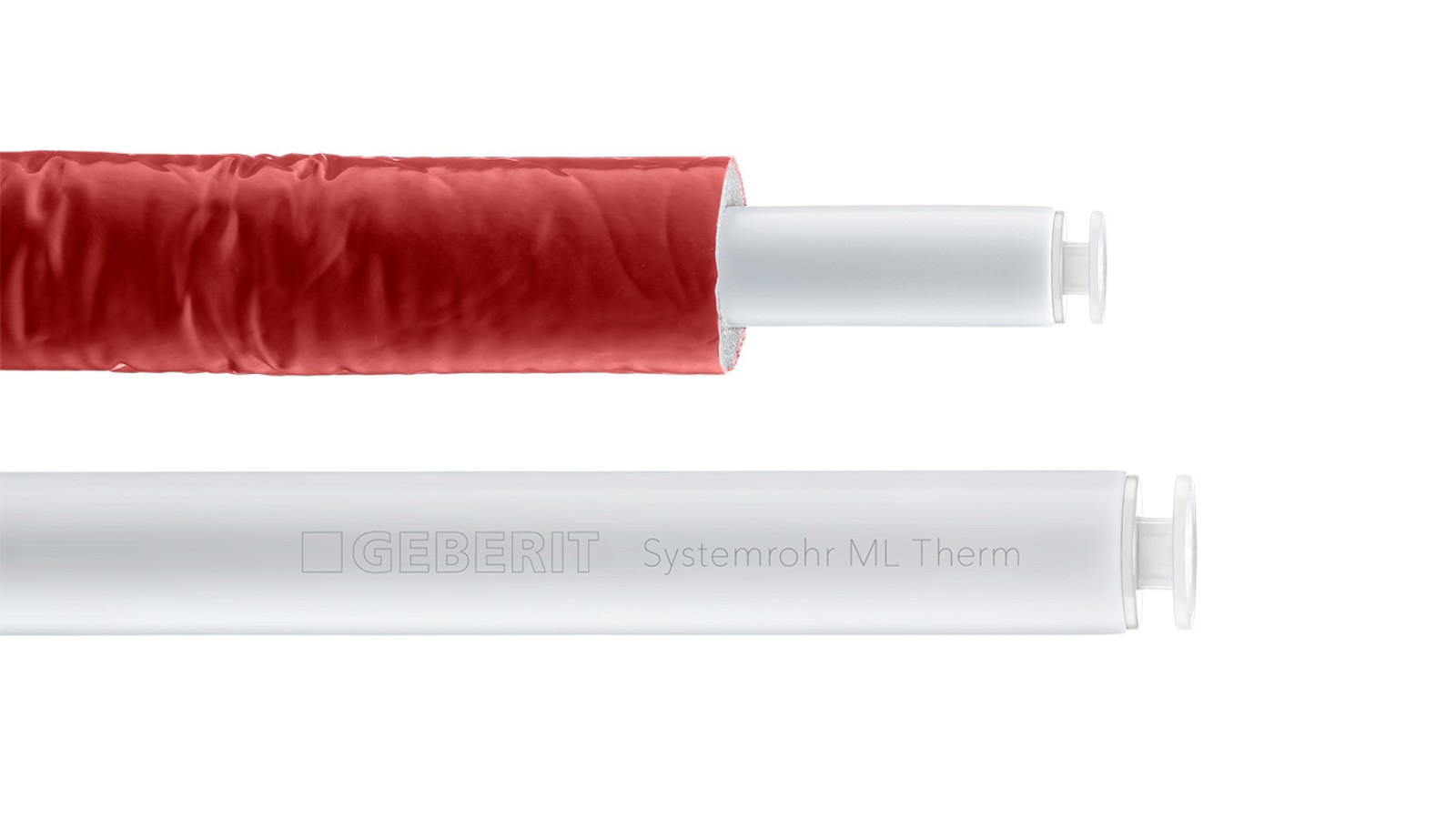

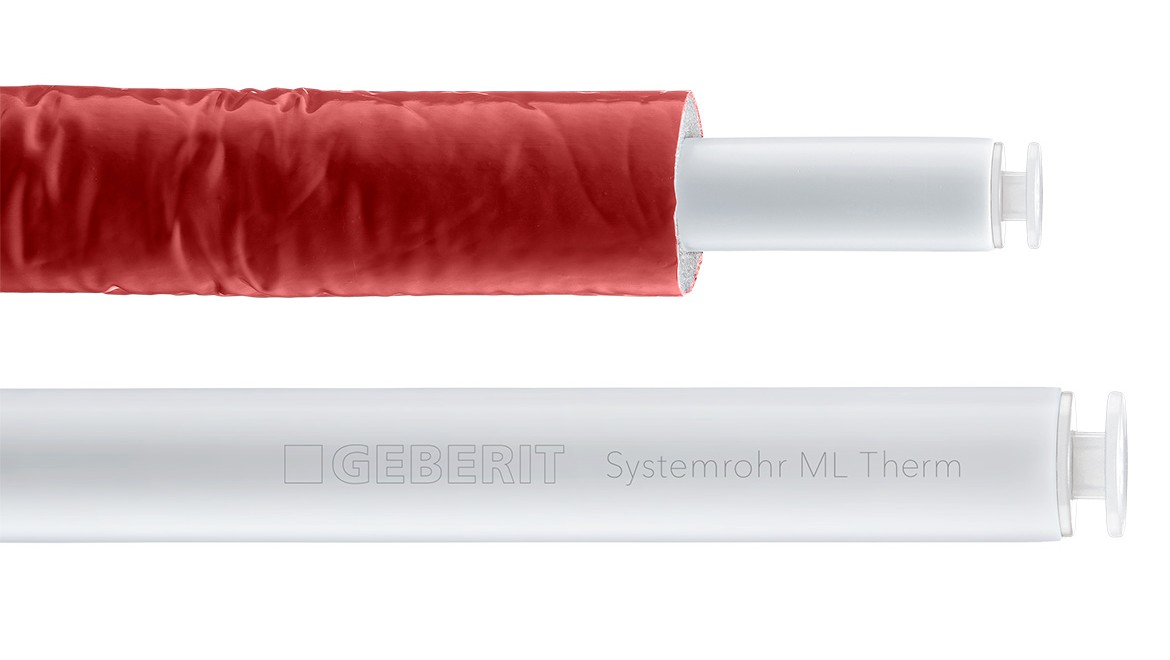

Geberit system pipe ML Therm
- For heating installations
- Available in coils for dimensions d16 to d25
- With insulation made of polyethylene foam for dimensions d16 and d35 with durable red foil coating
- Available in coils

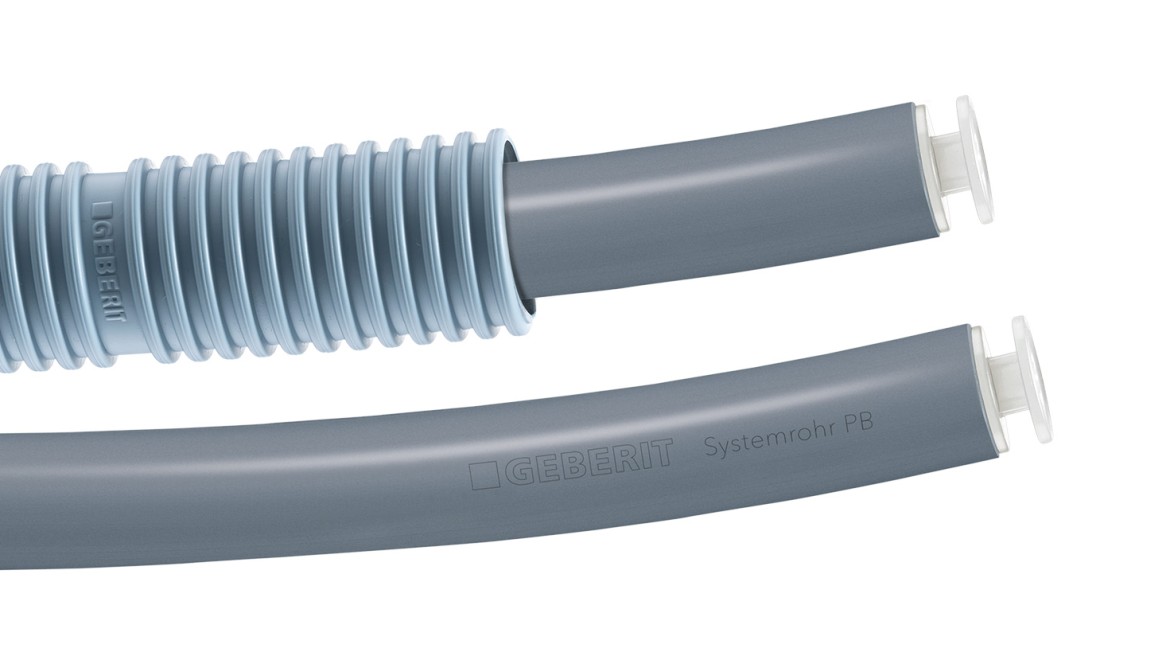

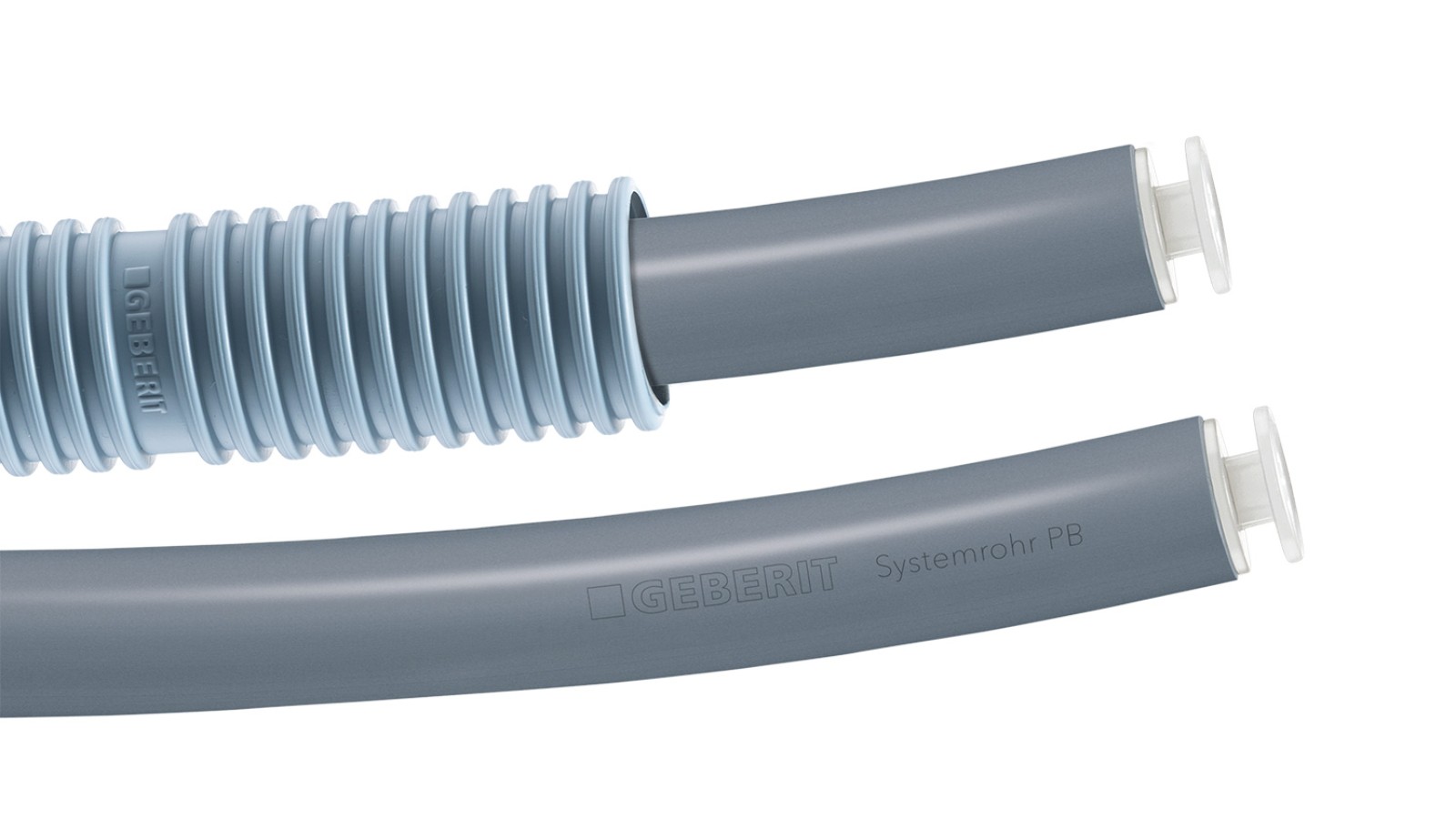

Geberit system pipe PB
- Flexible all-plastic pipe
- Available dimensions: 16, 20 and 25 mm
- Also available in the protective tube
- Available in coils
Aplinkosaugos produkto deklaracija
EPD product declaration
Environmental product declarations (EPDs) create transparency and allow products to be compared in terms of their environmental impact.
Environmental product declarations are available for Geberit FlowFit pipes and for the most common Geberit FlowFit fittings:
- Geberit FlowFit system pipes ML
- Geberit FlowFit system pipes PB
- Geberit FlowFit plastic fittings (only available in English)
- Geberit FlowFit metal fittings
Montavimas
A quick guide to installation
Geberit FlowFit produktai Artikulai, techninė informacija ir dar daugiau
Turite klausimų?
Susisiekite bendraisiais kontaktais.
Atraskite panašius produktus

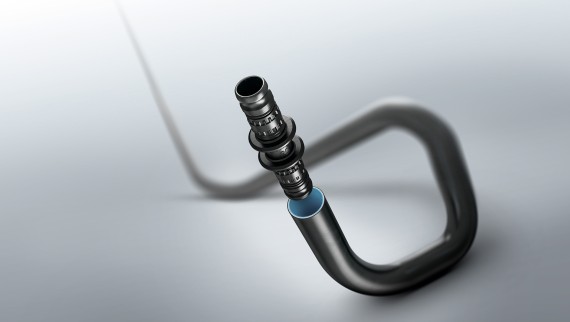

Geberit Mepla
Geberit Mepla – tai daugiasluoksnių vamzdžių ir užpresuojamų jungčių sistema, kuri puikiai tinka geriamajam vandeniui, suslėgtam orui bei šildymo ir oro kondicionavimo sistemoms.

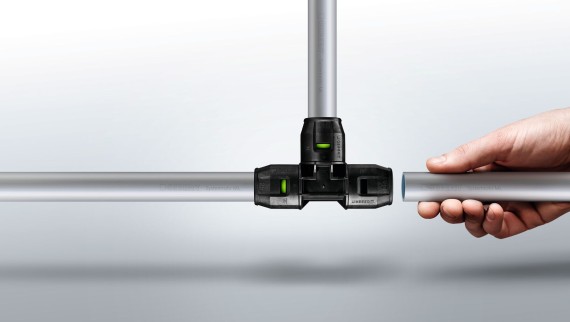

Geberit PushFit
Geberit PushFit - geriamojo vandens tiekimo ir šildymo grindų jungčių sistema.

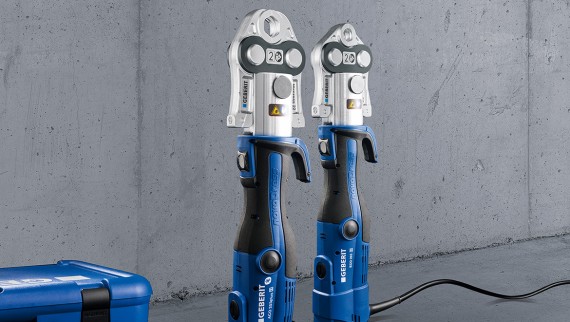

Geberit tiekimo sistemų įrankiai ir priedai
Naudojant Geberit presavimo reples, presavimo galvas ir žiedus, visus presavimo darbus atliksite tinkamai. Šie įrankiai yra laikomi pagrindine sistemos sertifikavimo dalimi.
Tiekimo sistemos
Šiuolaikiniai pastatai turi būti aprūpinti vandeniu, šiluma, energija ir grynu oru. Būtent šiuo atveju Geberit siūlo platų patikimų ir patvarių sprendimų asortimentą.

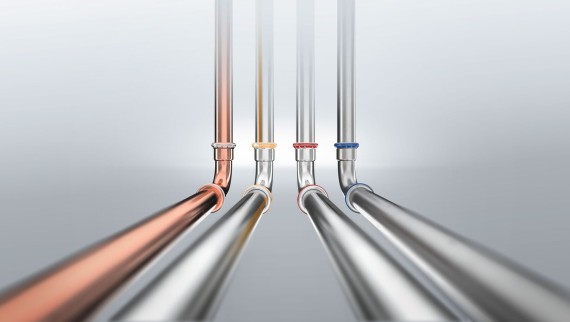

Geberit Mapress
