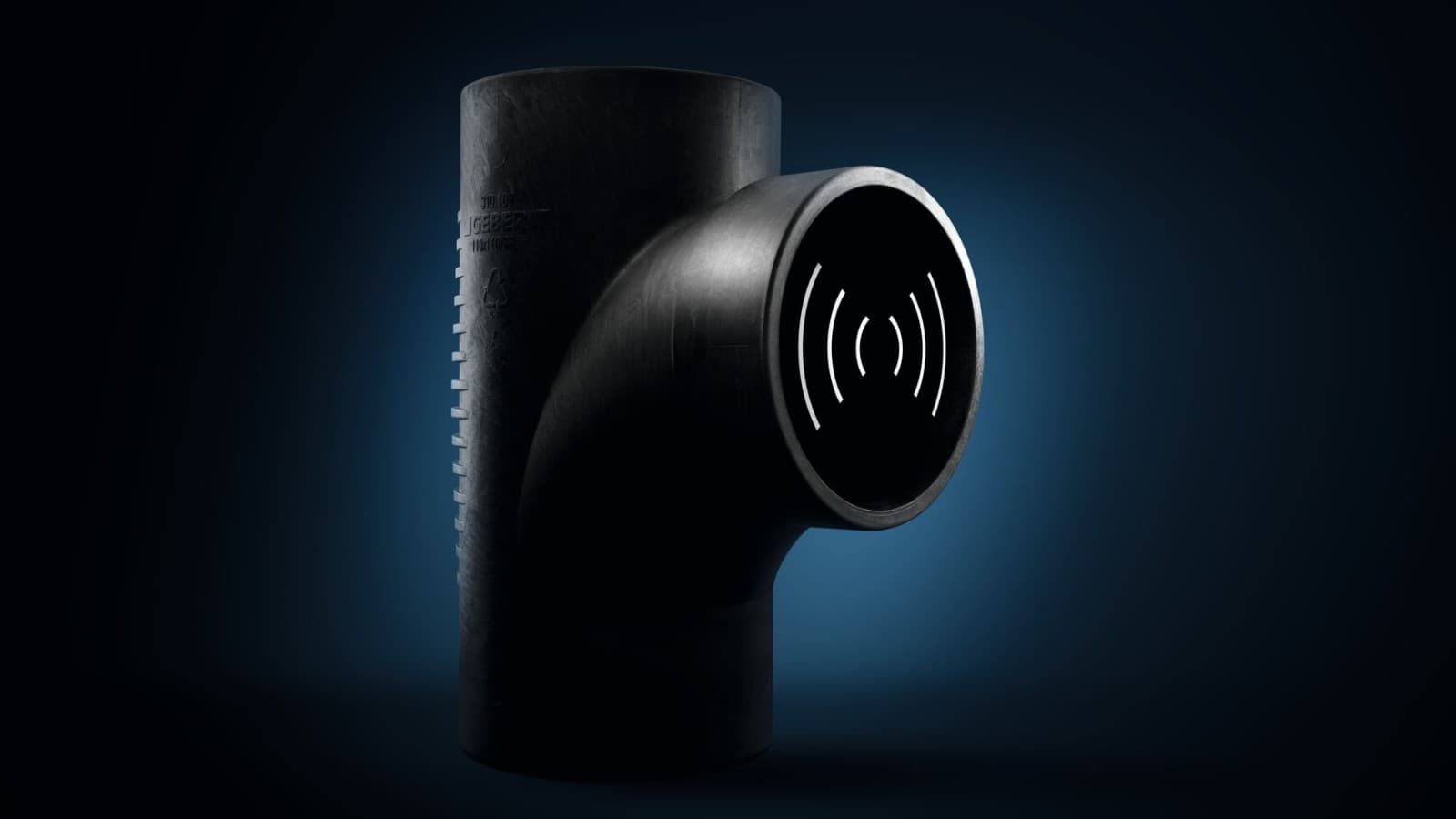

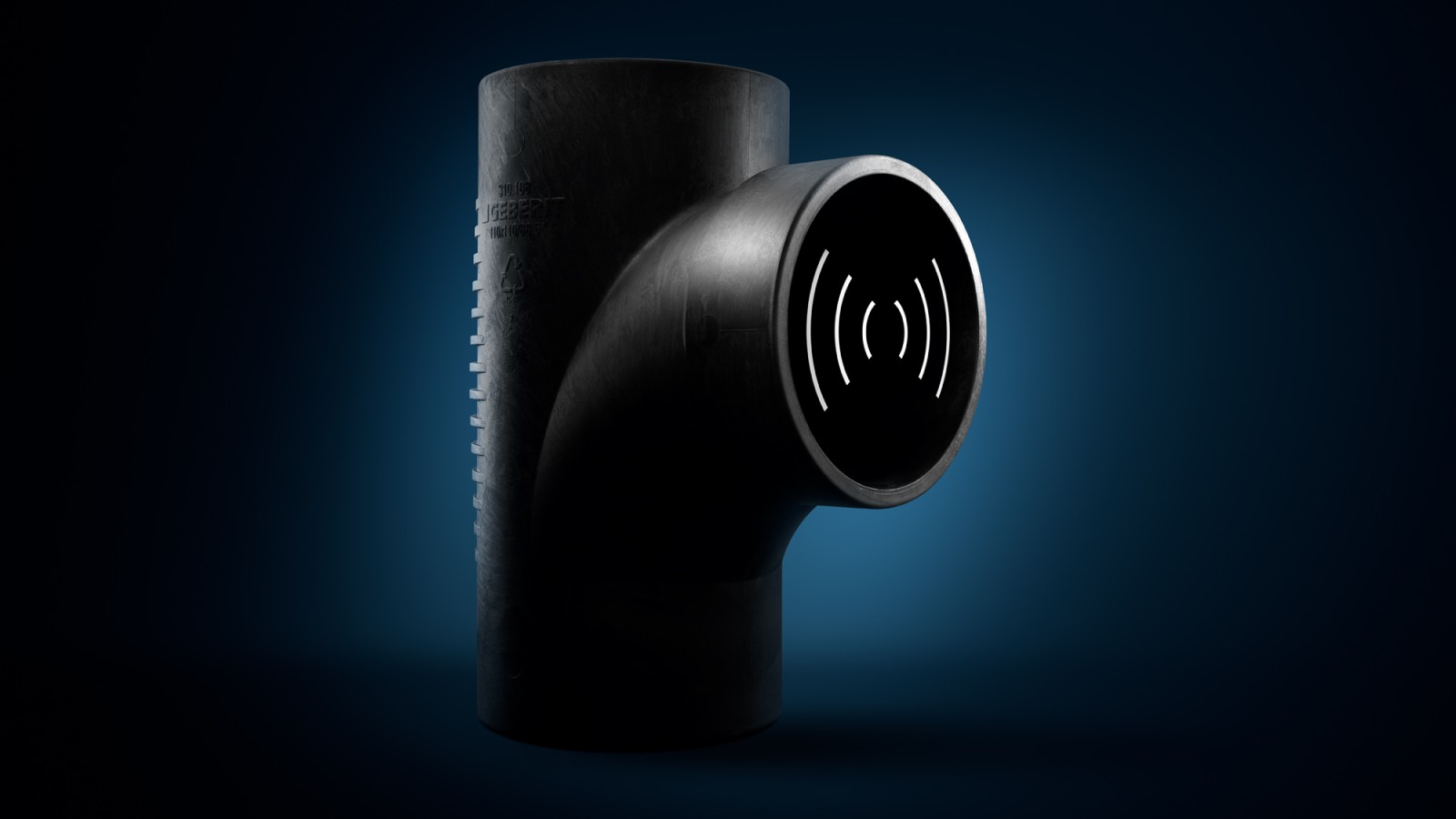

Geberit Silent-db20 Tvirtas sujungimas didelei garso izoliacijai
Triukšmingos nuotekų vamzdžiai gali kelti nepatogumų gyvenamuosiuose kompleksuose, viešbučiuose ar posėdžių salėse. Šiuo atveju Geberit Silent-db20 nuotekų sistema pašalina problemą dar prieš jai atsirandant.
Ši gerai garsą izoliuojanti nuotekų sistema tinka tiek vertikaliems vamzdžiams, tiek grindų jungtims, užtikrinant tylų ir efektyvų nuotekų šalinimą bet kuriame pastate.
Be to, sistema taip pat tinka surinkimui iš anksto.
Kodėl Geberit Silent-db20?

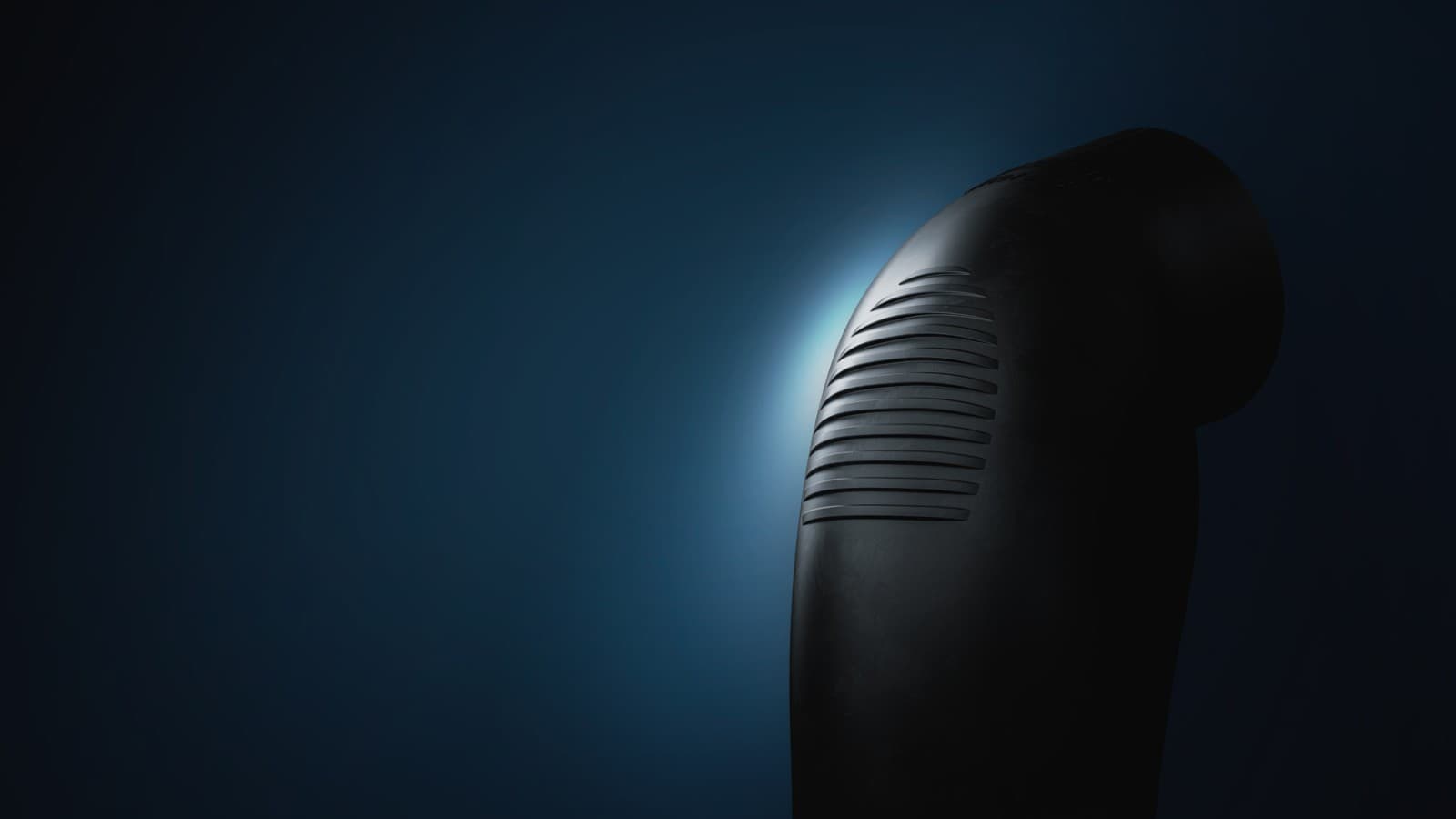

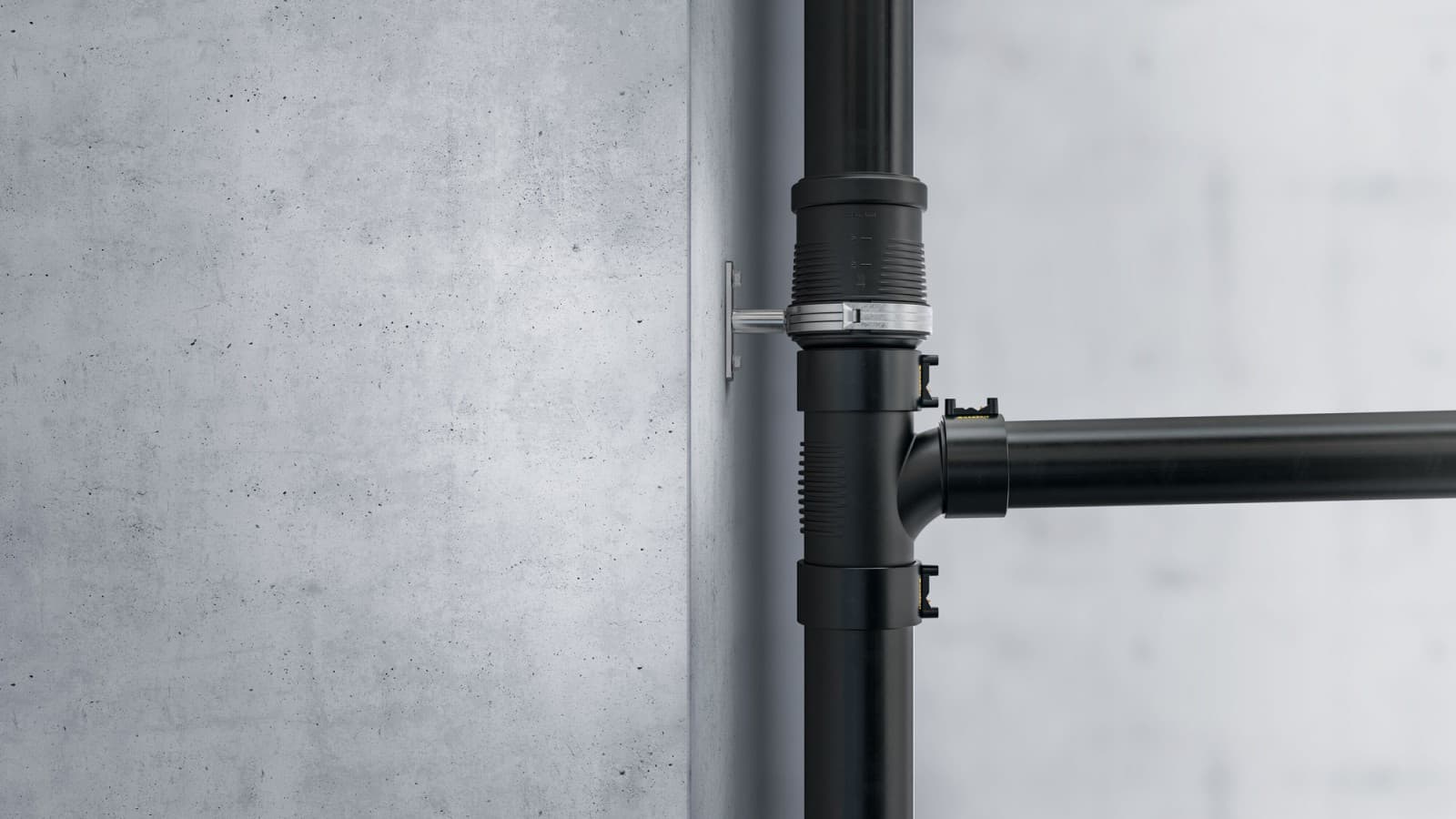

Natūralūs virpesiai yra sumažinti, o bet koks garsas yra pastebimai sugeriamas.

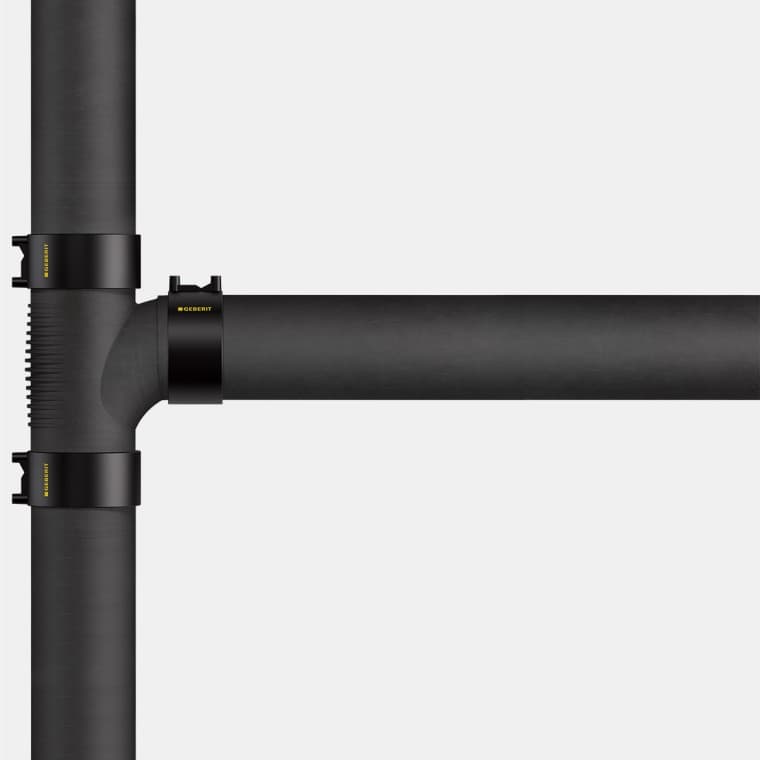

Geberit Silent-db20 galima prijungti naudojant sandūrinį suvirinimą arba elektrosuvirinimo movas.
Off-site prefabrication for cost-effective and safe system construction.
Hydraulically optimised for greater cost-efficiency, reduced space requirements and a high discharge capacity.
Daug gerų priežasčių rinktis Geberit Silent-db20

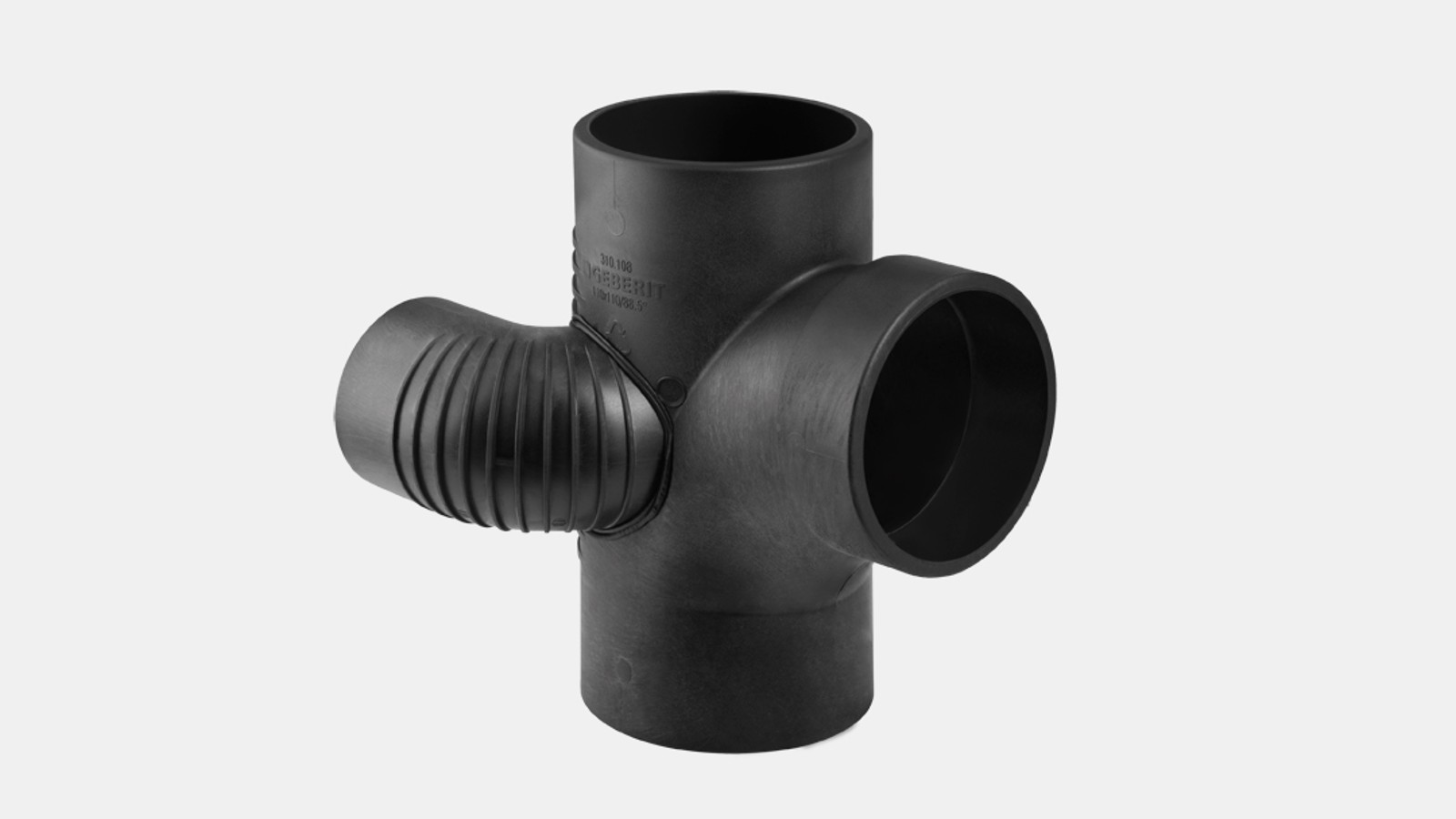

Geberit Silent-db20 vamzdžių asortimentas
Skersmenys
| Vardinis plotis (DN) | Matmuo d x s (mm) |
|---|---|
| 56 | 56 x 3,2 |
| 60 | 63 x 3,2 |
| 70 | 75 x 3,6 |
| 90 | 90 x 5,5 |
| 100 | 110 x 6 |
| 125 | 135 x 6 |
| 150 | 160 x 7 |
Geberit Silent-db20 product range Articles, technical information and more
Turite klausimų?
Susisiekite bendraisiais kontaktais.

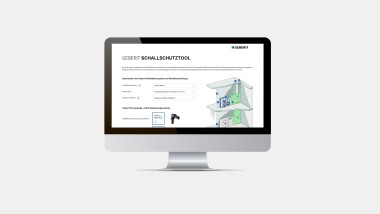

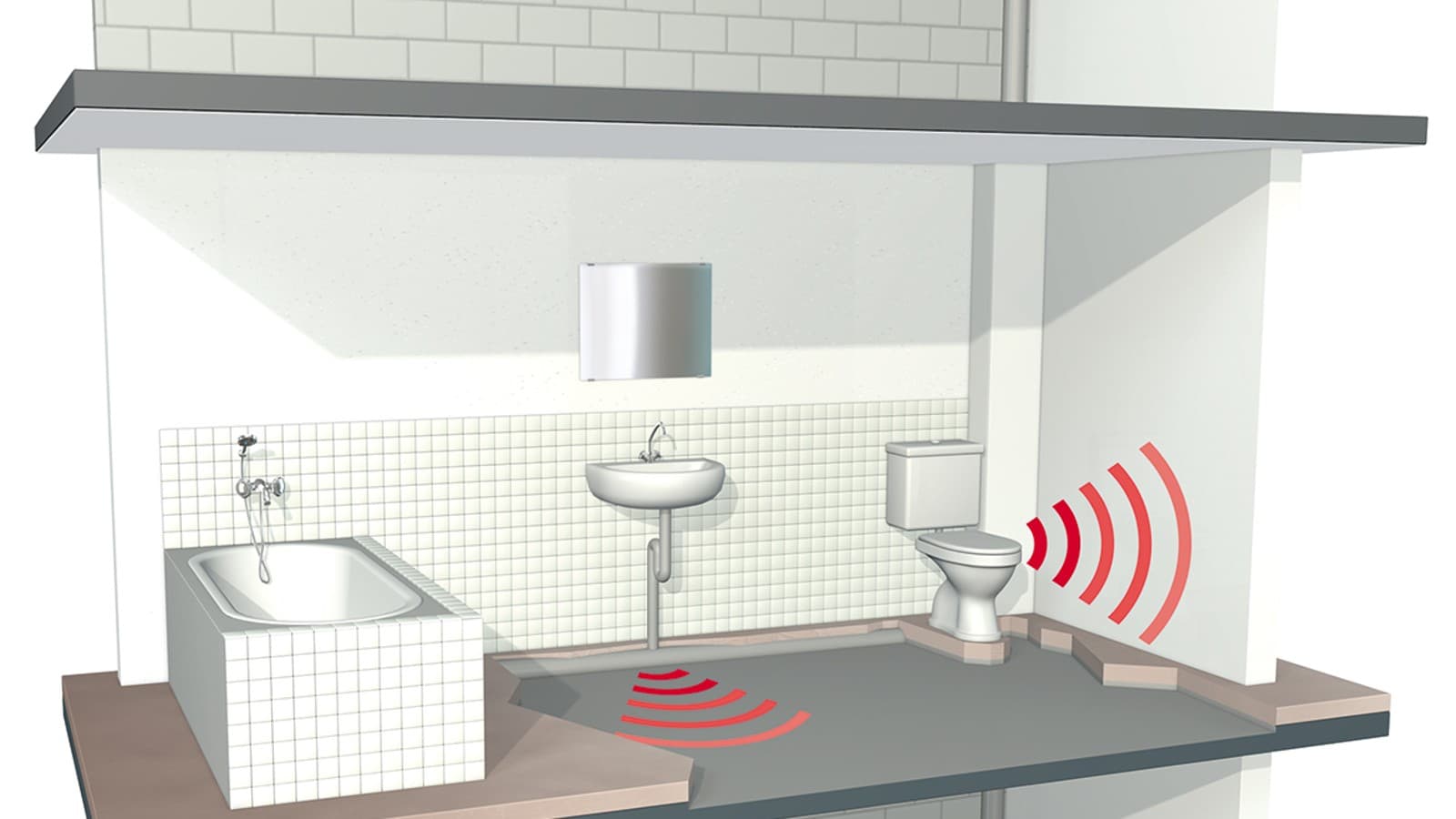

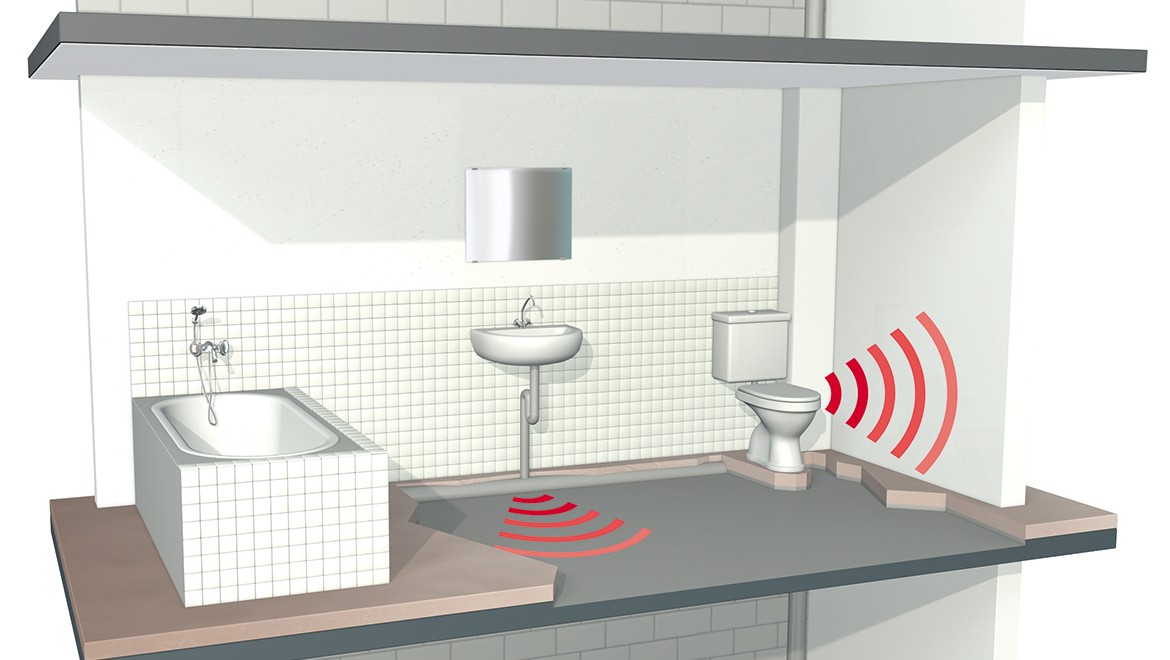

Skaičiuoklė akimirksniu pateikia triukšmo lygio sertifikatus pačioms įvairiausioms statybinės konstrukcijos situacijoms.
Visą techninę informaciją apie Geberit Silent-db20 raskite elektroniniame kataloge
Connection technologies for Geberit Silent-db20

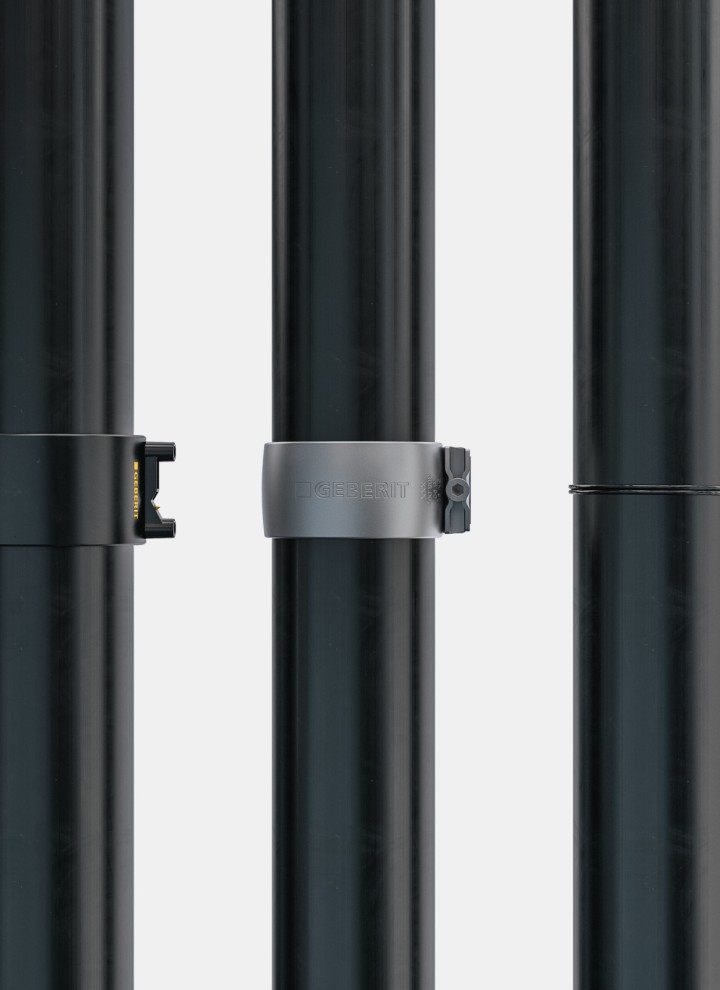

Whether using fast electrofusion welding or butt welding, Geberit Silent-db20 pipes and fittings can be securely connected using three different methods. In some countries, clamping connectors may also be used. A range of Geberit tools and accessories is available to ensure easy processing.
Double-flange expansion sockets and double sleeve couplings help compensate for the thermal linear expansion of Geberit Silent-db20 pipes and fittings. This allows the system to accommodate significant variations in operating temperatures. The EPDM seals play a key role in the long service life of the drainage system.
Geberit Silent-db20 is also suitable for prefabrication, enabling faster and more efficient workflows that are independent of progress on site. This significantly shortens the on-site installation time.
Geberit Silent-db20 is the ideal piping system for embedding connection pipes in concrete slabs, allowing for greater freedom in bathroom design. When working with concrete, non-positive connections are essential.
Tension-free installation despite axial offset Geberit Silent-db20 Offset
It is not always possible to avoid inaccuracies during construction, but when discharge pipe connection points are not perfectly aligned, this can cost plumbers both time and patience. With the Geberit Silent-db20 Offset fitting, stacks can be connected efficiently and tension-free, even when alignment is less than perfect.
Benefits of the Geberit Silent-db20 Offset:
- Tension-free installation for axial offsets of up to 10 cm
- Familiar, easy installation
- Reduced installation time compared to using two 45° bends
- Flexible adjustment with a single product
- Improved sound insulation compared to conventional connection correction methods
